640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain

Basic Information
Place of Origin: China
Brand Name: LongRun
Certification: CE
Model Number: I-tag COB1.25 300*60mm
Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Cartons / Plywood cases
Delivery Time: 18 - 23 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sqm / month
Pitch: 1.25mm Cabinet Dimension: 300*60mm/600*60mm/900*60mm/1200*60mm Etc
Scan Mode: 45 Scan Refresh Rate: 3840HZ
Viewing Angle: 160°/140°(H/V) Pixel Configuration: 1RGB
Application: Supermarket, LED Shelf Display, Price Tag, Brand Store, Retail Store, T Stage, Bar Product Name: COB1.25 LED Shelf Display For Retail Chain Brand Store Supermarket
High Light:

COB1.25 LED Shelf Display Sign

,

640000dot/m2 LED Shelf Display Sign

,

45scan Retail Chain LED Display

COB1.25 LED Shelf Display Sign For Retail Chain Brand Store Supermarket



 Product  Details Quick Reviews

1. Application: LED Shelf Display Sign For Retail Chain Brand Store Supermarket

Chain brand store / Cassio / High-end reference room / Hotel / Theatre / Stage / Showroom / Tourist attractions

Spermarket / Airport / Self-service store / Metro station

2. Pixel Pitch: COB1.25

3. Cabinet size: 300*60mm/600*60mm/900*60mm/1200*60mm etc. Longest length is 4800mm.



Product Features



This product is a synchronous and asynchronous shelf screen, which can be used for debugging,
uploading programs, editing programs, etc. via USB, wifi, 4G, and network ports. The screen adopts COB
encapsulation technology, which is different from the traditional SMD surface-mount encapsulation. It
integrates the light-emitting RGB chip in the PCB board instead of soldering LED lamp to the PCB one by
one. This technology effectively improves the reliability, light color and protection performance of LED
display screens.



1. Synchronous and asynchronous control: USB, Wi-Fi, 4G, network etc.

2. 24V low voltage power, low power consumption, support power adapter (the screen length longest to 4.8 meters).
3. Universal standardized profiles aluminum material, the size is 300x60mm, seamlessly assembled.
4.  WIde viewing angle, super wide gamut: The Horizontal and horizontal viewing angle of light can reach 170 degrees, wider than SMD screen.
5. High quality, clear vision: High resolution, 10000:1 ultra high contrast ratio, perfectly display screens
6. Excellent heat dissipation and low light decay, PCB board dissipate heat directly,extended service life.
7. The screen face IP65, dust-proof, anti-oxidation, anti-static, anti-impact.
8. Small size, light weight, compact and portable, plug and play.
9. The installation methods are diversified and widely used in various indoor places, give you a different visual experience.

10. Brilliant visual brightness: A COB type of screen, which visual brightness is brighter than all traditional screens in the market



Product Technical Parameter



COB1.25 LED Shelf Display Advertising Scrolling For Supermarket Shelf
  Item TY300 TYF300 T300










Technical
Pixel Pitch (mm) 1.25 1.25 1.25
LED Configuration COB 1R1G1B COB 1R1G1B COB 1R1G1B
Resolution (dot/m²) 640000 640000 640000
Cabinet size (W×H×D) mm 300x60x23.5 300x60x23.5 300x60x23.5
Cabinet resolution(W×H) dot 240x45 240x45 240x45
Cabinet Material Aluminum Aluminum Aluminum
Scanning mode 1/45 1/45 1/45
Cabinet Flatness (mm) ≤0.10 ≤0.10 ≤0.10
Gray level (Bit) 14 14 14

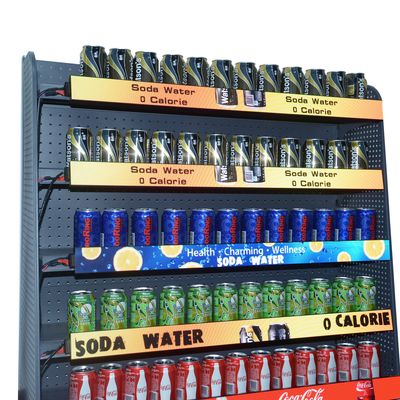

Product Pictures



640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 0640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 1640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 2640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 3640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 4

640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 5





640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 6
640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 7


Related Cases



640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 8



640000dot/M2 COB1.25 LED Shelf Display Sign 45scan For Retail Chain 9



Remarks



1.The price depends on the quantity. We can offer you the best competitive price at the market with the same even better quality

2. Your inquiry will be replied by well-trained and experienced staffs in 24 hours

3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

4. Help you design OEM&ODM or any your customized lightings and put into production

5. Distributorship are offered for your unique design and some our current models

6. Your sales area, ideas of design and all your private information will be well protected

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
