Product Name: | P3.91 Indoor Rental Screen | Tube Chip Color: | Full Color |
---|---|---|---|
Pixel Configuration: | SMD 1R1G1B | Brightness: | 800-1000nits |
Pixel Density: | 65536pix/sqm | Refresh Rate: | 3840Hz |
Cabinet Size: | 500x500x65mm Die Casting Aluminum | Application: | Live Events Led Display |
Highlight: | SMD 1R1G1B Indoor Rental LED Display,1000nits Indoor Rental LED Display,P3.91 Pixel Indoor Rental LED Display |

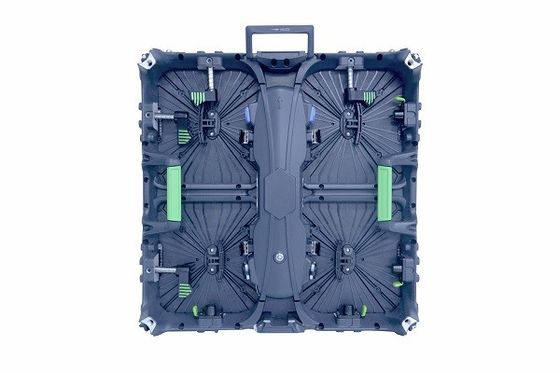

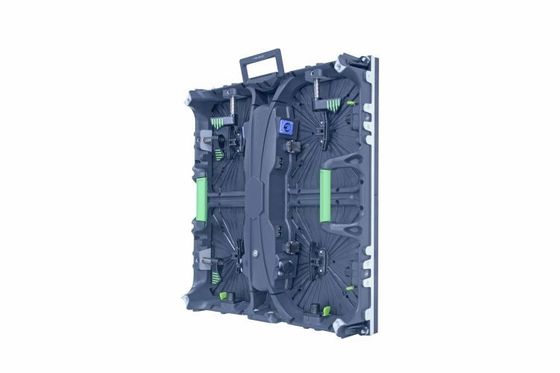

Front service Indoor Rental LED Display without remove the HUB board
Product Quick Details:
1,Pixel pitch:3.91mm
2,Single cabinet size:500*500mm/500*1000mm
3,Application:Rental/Event/Stage etc.
Product Features:
1. Pluggable power box. Remove power box one second.
2. Single operation design, need only one technician to install and maintain.
3. Front serviceable for indoor LED Module. Without remove the HUB board, the LED module could be changed directly
4. Corner protector to protect LED well
5. True 3840HZ high refresh rate, high contrast ratio.
6. Light weight: Total 7.5KGs 500*500mm, 13.5KGS 500*1000mm
7. Two size support mix splicing
Application:
Widely used in stage, concert, live on TV, wedding, conference, ceremony gala,
exhibition presentation,commercial advertising and other indoor rental events.
Product Specification:
Module specification | |
LED configuration | 3 in 1 |
Pixel pitch | P3.91 |
LED lamp | SMD2121 |
Module resolution | 64*64 |
Module size | 250*250mm |
Cabinet specification | |
Module array | 2*2pcs |
Cabinet resolution | 128*128 |
Cabinet size | 500*500mm |
Display area | 0.25sqm |
Flatness | <0.2 |
Optical specification | |
Brightness | 400-1000cd/sqm |
Scan mode | 1/16s |
Refresh rat | 3840Hz |
Horizontal viewing angle | 140degree |
Vertical viewing angle | 120degree |
Eletrical specification | |
Cabinet power consumption | 160w |
Average power consumption | 50w |
Power supply | AV 110V/220V (50/60Hz) |
Operation specification | |
Lifespan | 100,000 hours |
Operation temperature | -10~+60 |
Storage temperature | -10~+50 |
Operation humidity | 10%~80% |
Storage humidity | 40%~60% |
