| Place of Origin: | China |
|---|---|
| Brand Name: | LongRun |
| Certification: | CE |
| Model Number: | P3.91 500x500mm |
| Minimum Order Quantity: | 1 sqm |
| Price: | Negotiable |
| Packaging Details: | Flight cases / Plywood cases |
| Delivery Time: | 18 - 23 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sqm / month |
| Pixel Pitch: | 2.60mm , 2.97mm , 3.91mm | Module Size: | 250x250mm |
|---|---|---|---|
| Cabinet Size: | 500x500x65mm Die Casting Aluminum | Module Resolution: | 96*96 Dots , 84*84dots , 64*64dots |
| Cabinet Weight: | 7.5KGS | Refresh Rate: | 3840HZ |
| Application: | Live Events Led Display, Advertising, Concert, Outdoor Advertising Led, Advertising Led Display Screen | Product Name: | P3.91 Full Color Indoor Rental LED Display Screen For Stage / Live Event |
| High Light: | P3.91 Indoor Rental LED Display,3840HZ Indoor Rental LED Display,P3.91mm Stage Rental LED Display |
||
P3.91 Indoor Rental LED Display
P3.91 Full Color Indoor Rental LED Display Screen For Stage / Live Event
Product Details Quick Reviews
1. Usage: Indoor
2. Pixel Pitch: P2.60 / P2.97 / P3.91
3. Cabinet size: 500x500mm
Product Features
Standard 500x500mm, 500x1000mm cabinet size, Silan driving IC, refresh rate reach to 3840HZ. Cabinet adopts curve fast locks, can realize the arc splicing effect of 5-10 degrees of internal radian and 5 degrees of external radian. Stable cabinet structure, no deformation, the contact surface between cabinet is treated by anodic oxidation, which is resistant to collision and friction, satisfying multiple installation and disassembly in rental events.
1. Pluggable power box. Remove power box one second.
2. Single operation design, need only one technician to install and maintain.
3. Serviceable for indoor LED Module. Without remove the HUB board, the LED module could be changed directly
4. Corner protector to protect LED well
5. True 3840HZ high refresh rate, high contrast ratio.
6. Light weight: Total 7.5KGs 500*500mm, 13.5KGS 500*1000mm
7. Two size support mix splicing (500x500mm with 500x1000mm)
Product Technical Parameter
| P3.91 Full Color Indoor Rental LED Display Screen For Stage / Live Event | ||
| Specification | Item No. | P3.91 die-cast aluminium |
| Classification | Full color | |
| Pixel pitch | 3.91 mm | |
| Size of module (mm*mm) | 250*250 mm | |
| Pixel density | 65536 dots/m2 | |
| Pixel composition | 1RGB | |
| LED encapsulation | SMD 2121 | |
| Resolution of module | 64*64 | |
| Best viewing angle (Horizontal/Vertical) | 140°/120° | |
| Max power consumption | 800W/m2 | |
| Driving method | 1/16 Scan | |
| Refresh rate | ≥3840HZ | |
| Working voltage | AC 220±10% or 110±10% | |
| IC | ICN2150+ICN2012 | |
| Cabinet material | Die-cast aluminium | |
| Cabinet size | 500*500mm | |
| Cabinet weight | 7.5 kg/cabinet | |
| Non-Flatness | <1mm | |
| Contrast Ratio | 4000:1 | |
| Blind Spot Rate | <0.000001 | |
| Greyscale | 14 bits | |

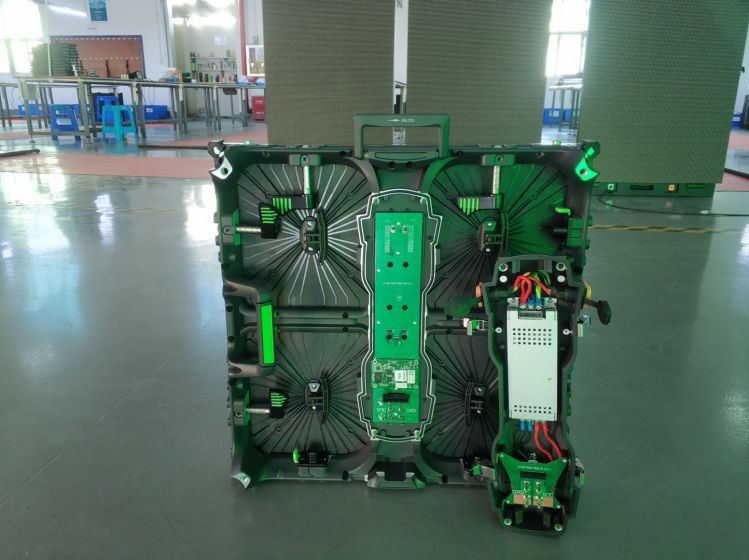

Product Pictures
Packing Details
| Packing info. | |||||||
| No. | Packing | Dimension (cm) | CBM | Gross weight | |||
| 1pcs flight case |
Flight case 8 pcs/case |
95*59*72 | 0.40 | 93.2 kGS | |||
| 20' full container: load 440pcs 500*500pcs Cabinets 40' full container: load 1016pcs 500*1000mm Cabinets |
|||||||
