| Place of Origin: | China |
|---|---|
| Brand Name: | LONGRUN |
| Model Number: | P4 die cast aluminium |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Flight case carton,6 pcs in 1 flightcase carton |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
| Brightness: | 500-1000 Cd | Refresh Rate: | 2400Hz |
|---|---|---|---|
| Gray Grade: | 14 Bits | Pixel Pitch: | P4 Die Cast Aluminium Rental Cabinet |
| Scan Mode: | 1/16 Scanning | Cabinet Size: | 512X512 Mm |
| Cabinet Weight: | 7.5kg/cabinet | Viewing Angle: | 140 /120 |
| Life Span (H): | >100000 Hours | Non-Flatness: | <1mm |
| Usage: | Indoor | Tube Chip Color: | FULL COLOR |
| Display Function: | Video | Pixels: | P4 Mm |
| Screen Dimension: | 512*512mm | Port: | Shenzhen |
| High Light: | indoor advertising led display screen,backdrop led screen |
||
Commercial Advertising LED Display , Hanging Led Screens For Events 1/16 Scanning
-- Main features of we Longrun profile aluminium cabinet
-- Light: 7.5kg/pc, 512x512mm, assembly time saved.
-- Thin: Die-cast aluminum design, high intensity, high tenacity, high precision, unchangeable, 85mm as the thickness.
-- Fast: Fast locks on the four edge of the cabinet, only 180 degree rolling will lock the closed two cabinets with high precision. Easy to assemble and disassemble the cabinets, fast, reliable and beautiful, it means true quick-assembling.
-- Easy: Modular design, easy to assembly and maintain.
| P4 indoor 512*512mm profile aluminium led display screen | |
| Item No. | P4 profile aluminium led display screen |
| Classification | Full color |
| Pixel pitch | 4 mm |
| Size of module (mm*mm) | 256*128 mm |
| Pixel density | 62,500ots/m2 |
| Pixel composition | 1RGB |
| LED encapsulation | SMD 2121 |
| Resolution of module | 64*32 |
| Best viewing angle (Horizontal/Vertical) | 140°/120° |
| Max power consumption | 780W/m2 |
| Driving method | 1/16 Scan |
| Refresh rate | ≥2400HZ |
| White balance brightness | 500-1000cd/m2 |
| Working voltage | AC 220±10% or 110±10% |
| IC | ICN2038S+2012 |
| Cabinet material | Die cast aluminium |
| Cabinet size | 512*512mm |
| Cabinet weight | 7.5kg/cabinet |
| Non-Flatness | <1mm |
| Contrast Ratio | 4000:1 |
| Blind Spot Rate | <0.000001 |
| Grey scale | 14bits |
Packing

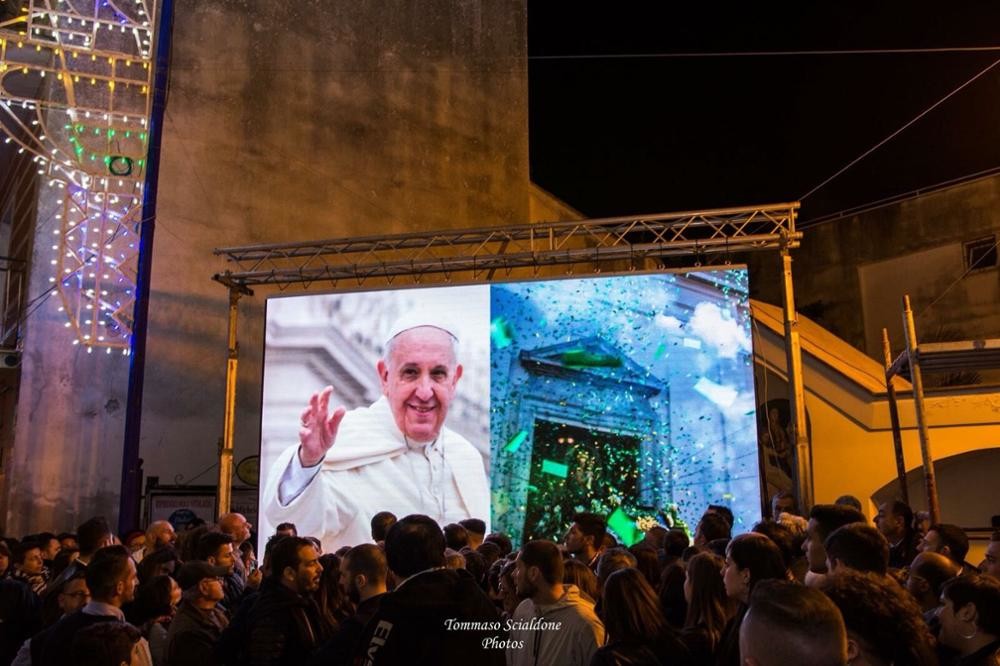

Project for P4 indoor 512*512mm profile aluminium led display screen:
Shenzhen LongRun Facotry:
