Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner

Basic Information
Place of Origin: China
Brand Name: LONGRUN
Model Number: P4 die cast aluminium
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Flight case carton,6 pcs in 1 flightcase carton
Supply Ability: 1000 Square Meter/Square Meters per Week
Brightness: 500-1000 Cd Refresh Rate: 2400Hz
Gray Grade: 14 Bits Pixel Pitch: P4 Die Cast Aluminium Rental Cabinet
Scan Mode: 1/16 Scanning Cabinet Size: 512X512 Mm
Cabinet Weight: 7.5kg/cabinet Viewing Angle: 140 /120
Life Span (H): >100000 Hours Non-Flatness: <1mm
Usage: Indoor Tube Chip Color: FULL COLOR
Display Function: Video Pixels: P4 Mm
Screen Dimension: 512*512mm Port: Shenzhen
High Light:

indoor advertising led display screen

,

backdrop led screen

 Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner





Features

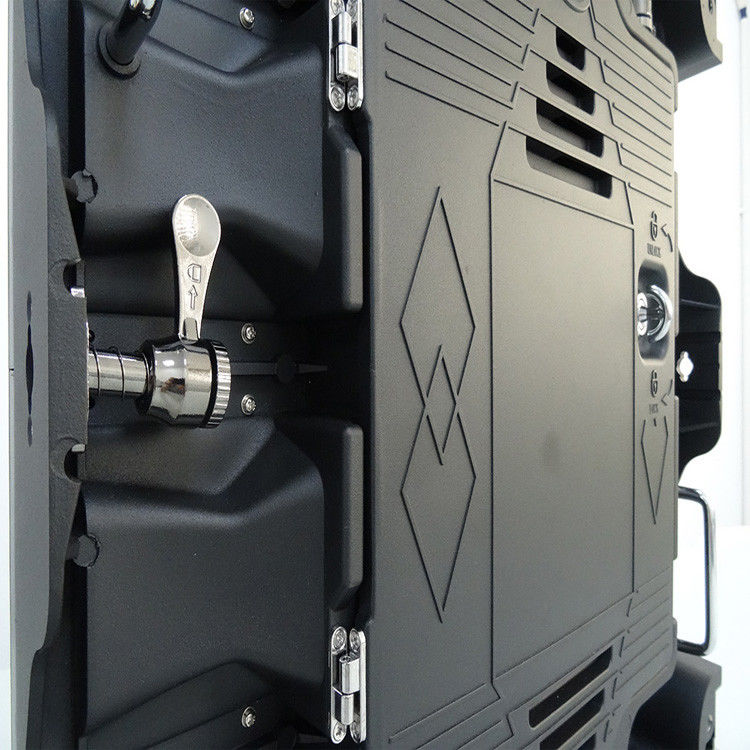

--Main features of we Longrun profile aluminium cabinet

--Light: 7.5kg/pc, 512x512mm, assembly time saved.
--Thin: Die-cast aluminum design, high intensity, high tenacity, high precision, unchangeable, 85mm as the thickness.
--Fast: Fast locks on the four edge of the cabinet, only 180 degree rolling will lock the closed two cabinets with high precision. Easy to assemble and disassemble the cabinets, fast, reliable and beautiful, it means true quick-assembling.
--Easy: Modular design, easy to assembly and maintain.



LED Wall Screen Specification

P4 indoor 512*512mm die cast aluminium led display screen
Item No. P4 die cast aluminium led display screen
Classification Full color
Pixel pitch 4 mm
Size of module (mm*mm) 256*128 mm
Pixel density 62,500ots/m2
Pixel composition 1RGB
LED encapsulation SMD 2121
Resolution of module 64*32
Best viewing angle (Horizontal/Vertical) 140°/120°
Max power consumption 780W/m2
Driving method 1/16 Scan
Refresh rate ≥2400HZ
White balance brightness 500-1000cd/m2
Working voltage AC 220±10% or 110±10%
IC ICN2038S+2012
Cabinet material Die cast aluminium
Cabinet size 512*512mm
Cabinet weight 7.5kg/cabinet
Non-Flatness <1mm
Contrast Ratio 4000:1
Blind Spot Rate <0.000001
Grey scale 14bits


Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner 0



 Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner 1Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner 2Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner 3



Packaging & Shipping

Packing



Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner 4





Logistics



Energy Saving P4 Indoor Led Display With Light Small Die Cast Aluminium Cabiner 5 Contact Method
