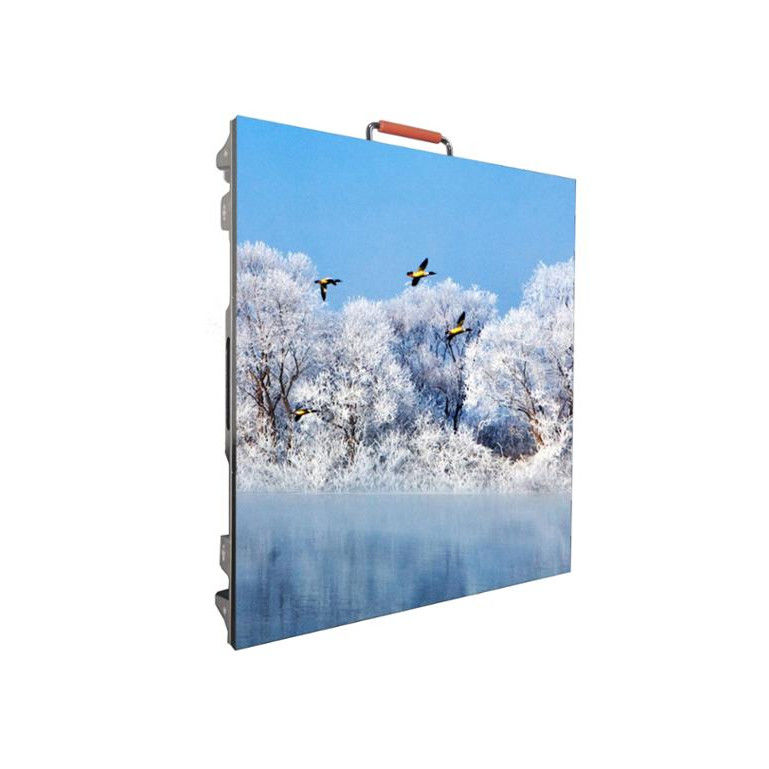

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan

Basic Information
Place of Origin: Guangdong, China
Brand Name: Longrun
Model Number: P2.604
Minimum Order Quantity: 1 Square Meter/Square
Price: Negotiable
Packaging Details: Flight case,6 in 1.
Supply Ability: 300 Piece/Pieces per Week
Module: P2.604mm LED Type: SMD1515
Density: 147456dots/sqm Pixel Configuration: 1RGB
Scan Method: 1/32 Scan White Balance Luminance: 500~1000cd/sqm
Refresh Rate: 3840Hz Certificate: CE,RoHS,ISO9001,CCC,FC
Life Span: >100000h Driving IC: ICN2153+ICN2012
Usage: Indoor Tube Chip Color: FULL COLOR
Display Function: Video Pixels: 2.604mm
Screen Dimension: 500*500mm Port: Shenzhen Or HK
High Light:

indoor advertising led display screen

,

backdrop led screen

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan





Technical specification:

Item Parameters
Model P2.604
Pixel Pitch(mm) 2.604
Physical Density (dot/sqm) 147456
LED Configuration 1RGB
LED Type SMD1515
Module Size (mmxmm) 250x250
Module Resolution (PXxPX) 96*96
Scanning mode 1/32
Brightness(cd/sqm) 500-1000
Grey Scale 16bit
Refresh Rate(Hz) 3840Hz
Drive Mode Constant Current Drive
Module Mask Structure Yes
Horizontal Viewing Angle(Deg) 140
Vertical Viewing Angle(Deg) 120
Cabinet Resolution(PXxPX) 192x192
Module Power Consumption(w) 22.5
Cabinet Max Power Consumption(w) 160
Cabinet Average Power Consumption(w) 50
Cabinet Size(mmxmm) 500x500
Cabinet Weight(kg) 6
Cabinet Thickness(mm) 85
Cabinet Material Die-casting Aluminum
Color(M) 16.7
Input Voltage AC110V-220V +/-10%
Refresh Frame Frequency(Hz) 30-60
Protection Level IP45
Working Environment Indoor
Working Temperature(℃) -40°-+60°
Storage Humidity(RH) 40%-60%
Life Span(H) 100,000





 Product Description:

♥High-precision die casting aluminum material cabinet,special design on cabinet bottom ensures flatness of whole screen even the platform is not flat.Also can protect modules in screen bottom.Front and back maintenance design by module magnet assembly.

♥250mm×250mm module,compatible P2.604/P2.97/P3.91 high contrast,high gray scale.

♥PWM driving IC,refresh≥3840HZ,ensures true 16bit gray level.

♥High-perfomance PCB board substrate with strict technology process ensure perfect flatness performance,showing the most real and brilliant colors.

♥tographic Optional LCD panel design on cabinet back can show company name,LOGO,temperature,humidity,working voltage,cumulative operation time etc.



Product Details:

 Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 0

Product Specification:

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 1Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 2

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 3

Case:

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 4

Shipping:

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 5

 Company Information:

Shen Zhen Longrun LED Optoelectronic Co.,Ltd,a professional LED display manufacturer,was established in 2009 which has his own R&D department and a total of more than 12,000 square meters of ultra-clean,anti-static plant,the most advanced automatic equipment.Being one of the domestic leading suppliers in LED product application and solution,Longrun has separate purification plant,R&D base,and the industry's most advanced automated production and testing equipment.It dedicates in providing terminal clients with LED applications of high quality and performance and also with the most effective service.

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 6

Production process:

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 7

Certificate:

Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 8

User Guidline:

1. Keep right temperature and humidity.

 Humidity is important for LED display, do not get wet in the rain for indoor display, and do not store display in high humidity environment. As for rental display, please keep dry and clean to flightcase, saving some desiccants in flightcase is recommended, and please change the desiccants regularly. For display that have not used for a long time (over two weeks), dry it with blower before using. And don’t run max brightness for the first trial.



2. Power supply system must be stable, especially for protection of ground connection. Stop using LED display in bad weather, such as strong thunder or lightning.



3. It is forbidden to get conductive material in display, like water and iron chips. Keep display in Low-Dust environment, too much dust influences circuit of display and display effect in the meantime.



4. LED display ON/OFF.

l Run PC and control system then turn on display.

l Turn off display before PC after using.

l Do not turn on display when it is on white balance situation to avoid high start current that can damage PCB circuit of display or control card.



5. LED display using.

l In dry season (<60%RH), it is suggested that run LED display once in one week at least, and running time is more than 2 hrs, also off time is more than 2 hrs per day.

l In rainy season (>80%RH), it is suggested that run LED display once everyday, adjust display brightness to be 60%, and play video above 3hrs, the best running time is between 7am to 10am.

l In normal season (60%-80%), it is suggested that run LED display once in one week at least, adjust display brightness to be 60% for playing video around 5hrs, the best running time is between 7am to 10am and 6pm to 10pm.

l Do not play in max white balance for a long time (> 2hrs) to avoid excessive current that can speed up LED decay and short its spanlife.



6. LED display daily cleaning and maintenance.

Timely clean dust on display with soft cloth dipping with alcohol or by vacuum cleaner. Do not wipe led display surface with led lights directly by water.



7. Assembly or disassembly LED display must be handled by professional people.



8. Regularly checking LED display inside components and circuits, all maintenance and service jobs must be handled by professional people.






Stage Use P2.604mmIndoor Rental LED Display Cabinet Size 500*500mm 1/32 Scan 9
