New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness

Basic Information
Place of Origin: Guangdong, China
Brand Name: LongRun
Model Number: LRSP4.81
Minimum Order Quantity: 1 Square Meter/Square
Price: Negotiable
Packaging Details: For fixed instalation, wooden case or celluar carton packing is recommendedad gorgeous led display xxx video movies.
Supply Ability: 500 Square Meter/Square Meters per Week ad gorgeous led display xxx video movies
LED Type: Outdoor Led Display For Advertising Or Activity Pixels Per Sqm: 4.81mm
Module Size: 250*250mm Brightness: 800-3000cd/sqm
Scan Method: 1/13scan Fresh Rate: >3840 Hz
Grey Level: Current >3mA: 16bits Certificate: CE
Life Span: >100,000 Hours Input Voltage: AC 110 Or 220 V ±10%
Usage: OUTDOOR Tube Chip Color: FULL COLOR
Display Function: Video Pixels: 4.81mm
Screen Dimension: Size As Your Request Port: Shenzhen
High Light:

waterproof led screen

,

outdoor full color led display

New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness



P4.81 FULL COLOR INDOOR DISPLAY SPECIFICATION

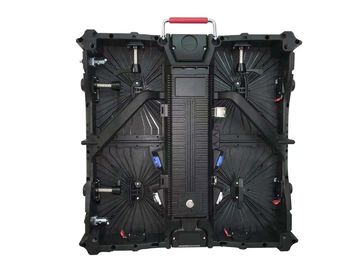

P4.81 outdoor 500*500mm die cast aluminium led display screen

Specification

Item No.

P4.81 die cast aluminium led display screen

Classification

Full color

Pixel pitch

4.81 mm

Size of module (mm*mm)

250*250 mm

Pixel density

65536 dots/m2

Pixel composition

1RGB

LED encapsulation

SMD 1919

Resolution of module

52*52

Best viewing distance

3~30m

Best viewing angle (Horizontal/Vertical)

160°/140°

Max power consumption

650W/m2

Driving method

1/16 Scan

Refresh rate

≥3840HZ

White balance brightness

≥800~3000cd/m2

Working voltage

AC 220±10% or 110±10%

IC

ICN2150+ICN2012

Cabinet material

Die cast aluminium

Cabinet size

500*500mm

Cabinet weight

7 kg/cabinet

Non-Flatness

<1mm

Contrast Ratio

5000:1

Blind Spot Rate

<0.000001

Grey scale

14 bits





P4.81 full Color LED Video Wall Application

New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness 0New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness 1New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness 2

Features:

1. High-precision die casting aluminum material cabinet,special design on cabinet bottom ensures flatness of whole screen even the platform is not flat.Also can protect modules in screen bottom.Front and back maintenance design by module magnet assembly.



2. 250*250mm module,compatible P3.91/P4.81,High contrast,high gray scale.



3. PWM driving IC,refresh≥3840Hz,ensure true 14bit gray level.



4. High-performance PCB board substrate with strict technology process ensure perfect flatness performance,showing the most real and brilliant colors.



5. Optional curved lock to meet customer needs for curved screens.

Success Case New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness 3



New Design Outdoor Rental LED Display P4.81 500*500mm 800-3000cd/Sqm Brightness 4
