Small Pitch P1.984 COB LED Display Outdoor Advertising Led Screen Panel

Basic Information
Place of Origin: Guangdong,China
Brand Name: Longrun LED
Model Number: Epro-1.984
Minimum Order Quantity: 6
Price: USD2480-2550/Square meter
Packaging Details: Flight case
Delivery Time: 25-30 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 pieces per month
Pixel Pitch: 1.984mm Cabinet Size: 500*500mm
Module Size: 250*250mm Pixel Density: 254016
Scan Mode: 21S Brightness: 3000
Gray Scale: 13 Bit Refresh Rate: 3840 Hz
High Light:

Small Pitch COB LED Display

,

P1.984mm COB LED Display

,

Advertising Small Pitch LED Display

Small Pitch P1.984 COB LED Display Outdoor Advertising Led Screen Panel



World Exclusive Debut Outdoor COB Fine Pitch 1.984mm High Brightness LED Display



Features:
• Pixels Pitch :1.984mm
• Cabinet Size: 500*500mm ; Module Size :250*250mm
• Full flip chip process, good stability, higher luminous rate
• Customized pigment matching treatment, brightness up to 3000cd/m
• 10000:1 ultra high contrast, restore real color
• Front and rear installation/maintenance: convenient and flexible to meet different application
• Optional connecting magnet, automatic suction, fast positioning, splicing more convenient
• Hard-wired power box : no wiring, can be quickly disassembled and replaced, save time



Description:

• Fine Pitch COB LED Screen for Outdoor Use
1.98mm fine pitch, 10000:1 contrast ratio and ultra-wide views create a stunning visual effects.
• Upgraded High-Protection COB technology
Adopt flip chip COB technology, waterproof, dust-proof, anti-oxidation, anti-static, anti-impact.with its perfect

protection ability, stabilizes LED screen quality even frequently touring use.Greatly saving maintenance cost.
• IP65 Protection, Super High Stability
IP65 high protection both module face and cabinet facilitates long-time stable running even under harsh weather.
• Creative Splicing, Various Applications

Supporting concave and staggered splicing, for free to use in outdoor rental event or permanent installation.



Specifications:



Model Epro-P1.984
Density(dot/sqm) 254016
Pixel Configuration 1RGB
Module Size(mm*mm) 250*250mm
Cabinet Size(mm*mm) 500*500mm
Scanning Method 1/21
Grayscale(bit) 13
Refresh Rate(Hz) 3840
Driving Method Combination of lamp and drive
Horizontal Viewing Angle >=140
Vertical Viewing Angle >=100
Cabinet Weight(kg) 8
Cabinet Material Die-casting Aluminium
Color(M) >16.7
Output Voltage(V) AC110-220V+/-10%
Proof Level IP65
Usage Environment outdoor
Working Temperature(°C) -20°C - +50°C
Storage Humidity(RH) 10%-90%
Lifespan(H) 100,000

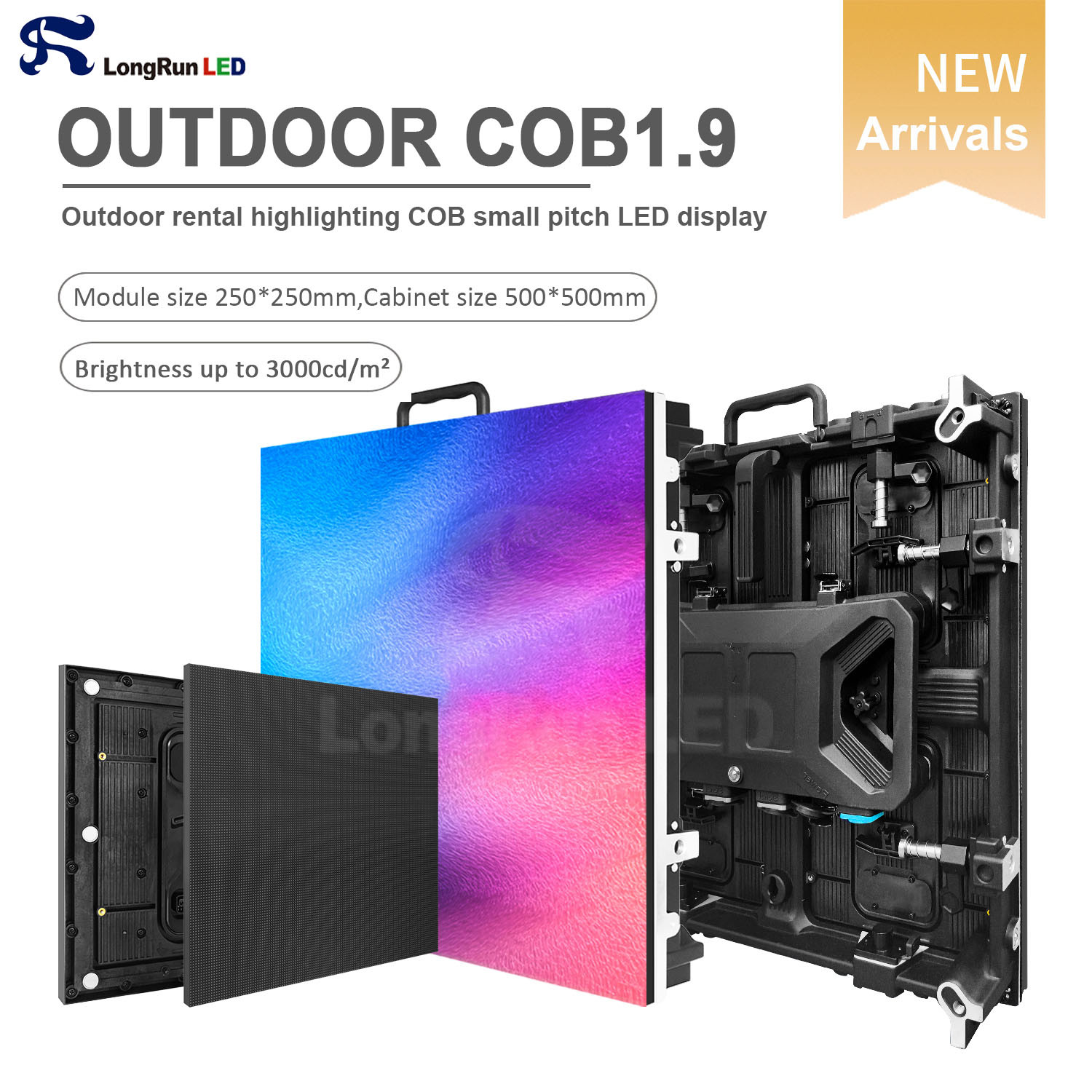

Product Image:

Small Pitch P1.984 COB LED Display Outdoor Advertising Led Screen Panel 0



Company Information:

Founded in 2013, Shenzhen LongRun Optoelectronic Co., LTD. is a professional LED display manufacturer

engaging in R&D, manufacturing, and sales. LongRun, with 30 million yuan registered capital, owns a 12,000

sqm manufacturing base located in.The domestic market has covered 35 provinces and cities / autonomous

regions, the overseas business expansion is also quite large-scale, the products are exported to Europe, North

America, South America, Russia, Saudi Arabia, India, Singapore, and other more than 130 countries and regions.



Advantages:

1. OEM manufacturing welcome

2. Sample order is available

3. We will reply you for your inquiry in 24 hours.
