Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control
Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control
Basic Information
Place of Origin: ShenZhen,China
Brand Name: longrun
Certification: CE
Model Number: I-TAG COB 1.25
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton/Plywooden case
Payment Terms: L/C, T/T
Contact Now
Product Name: P1.25 COB Shelf Display Application: Super Market,shop
Module Size: 150*56.25mm Power Supply: 5V 60A
LED Chip: COB Cabinet Size: 300mm*60mm
Brightness: 500cd/sqm Certificate: CE RoHS UL FCC Certifications
Usage: Indoor
Highlight:

led shop display screen

,

retail led display

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control





Technical Parameters

Item Parameters
Model P1.25
Pixel Pitch(mm) 1.25
Physical Density (dot/sqm) 640,000
LED Configuration 1RGB
Module Size (mmxmm) 150*56.25
Module Resolution (PXxPX) 120*45
Scanning mode 1/45
Brightness(cd/sqm) 500
Grey Scale 16bit
Refresh Rate(Hz) 2880Hz
Panel Resolution(PXxPX) 240*45
Panel Max Power Consumption(w) 15
Panel Average Power Consumption(w) 5
Panel Size(mmxmm) 300*56.25
Panel Weight(kg) 0.35
Panel Thickness(mm) 20
Panel Material Profile aluminum
Color(M) 16.7
Input Voltage AC110V-220V +/-10%





Our advantages:



1,2cm super slim thickness

2,modular design to match the standard supermaket shelf

3,optional panel size 300*56.25mm, 600mm*56.25mm or 900mm*56.25mm

4,easy assemble

5,support hot-plug

6,support hook type installation

7,quick delivery time 5-10 days



Product features:

1,Smaller pixel pitch: P1.25

2,Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.

3,Higher reliability and stability: COB technology has simpler process on material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.

4,Larger viewing angle: has larger viewing angle and is easy to control the loss of light refraction.



Detailed Images

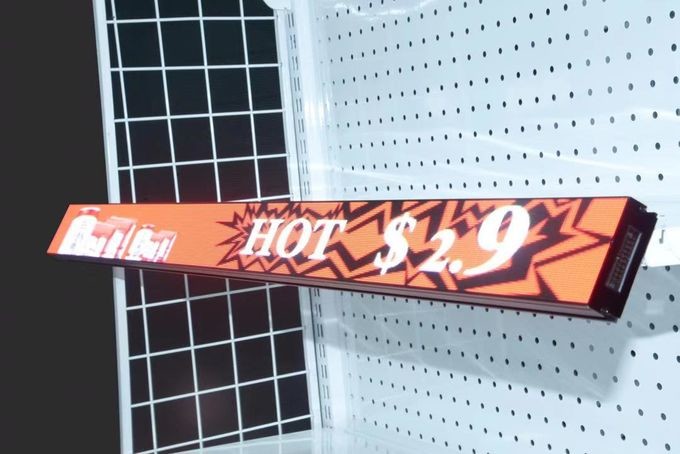

Single panel reference: 600mm(W)*56.25mm(H)

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 0

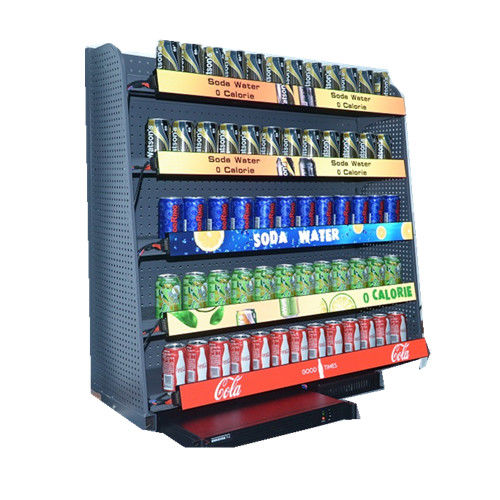

4 panel assembling reference: 2400mm(W)*56.25mm(H)

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 1



Easy assembling with screws

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 2



Support hot-plug

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 0



Support hook type installation

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 4

 Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 5



Packaging & Shipping



Carton

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 6



Certifications

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 7

Advantages

Indoor LED Shelf Display COB 1.25mm Synchronous And Asynchronous Control 8

Tag:

cob led display

retail led display

led shop display screen
