Name: Outdoor Full Color LED Video Wall Cabinet High Resolution LED Large Screen Display
Brand: Shenzhen Longrun LED Optelectronic CO.,LTD
SKU: D-pro
Price: 750.00 USD
Availability: InStock

Outdoor Full Color LED Video Wall Cabinet High Resolution LED Large Screen Display

Basic Information

Place of Origin:	Guangdong,China
Brand Name:	Longrun LED
Model Number:	D-pro

Minimum Order Quantity:	6 pieces
Price:	USD600-900/Square meter
Packaging Details:	Flight case
Delivery Time:	25-30 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200 pieces per month

Contact Now

Pixel Pitch（mm）:

4mm

LED Configuration:

White SMD2727

Physical Density（dot/m²）:

40000

Module Size(W×H×D)mm:

480x320x46.8

Cabinet Size (W×H×D)mm:

960x960x82.3

Scanning Mode（Scan）:

1/10

Grey Scale（Bit）:

14/16

Brightness(Customized):

4500-5000

Highlight:

SMD2727 LED Video Wall Cabinet

High Resolution LED Video Wall Cabinet

Product Description

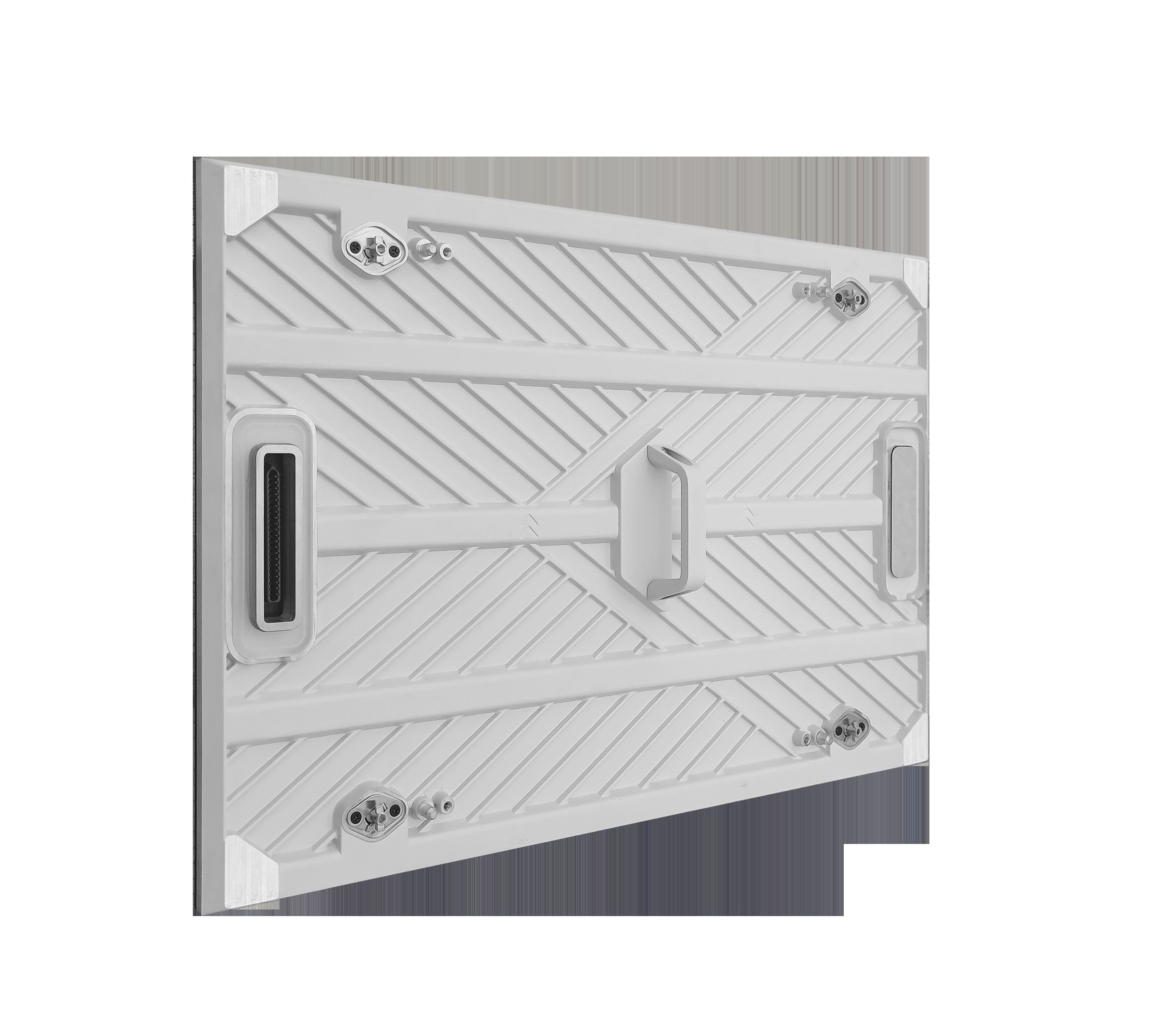

This waterproof series is LongRun LED back installation and back service products, using 480x320mm

die-casting waterproof module, with 960x960mm profile aluminum cabinet.This series of products are

suitable for various outdoor application fields of different environmental brightness, with high brightness,

high contrast, gorgeous picture, high protection ability, excellent weather resistance, long service life.

1 Application Scope

This technical specification is only applicable to LongRun outdoor Guardian series

product. Module size:480x320mm,its supporting profile aluminum cabinet.

2 Product Features

-- 480x320mm module size,compatible with: DH5-Pro,DH5.7-Pro,DH6.67-Pro,DH8-Pro,DH10-Pro

960x960mm cabinet size;

-- The frame is spliced in full profile structure, with high overall processing precision and high strength, which

saves the traditional installation steel structure;

-- Dual-voltage power supply, energy consumption than traditional outdoor products to save more than 30%;

-- With light cabinet, easier installation and transportation;

-- With die-casting aluminum module,optional contact cooling of the ICs keeps the light board cooler;

-- Fully hard-wired cabinet and waterproof up to IP66.

480x320mm Module Specification

Series	LR-D-PRO Series
Pixel Pitch	4mm,5mm,5.7mm,6.67mm,8mm,10mm
Resolution	120x80, 96x64,84x56,72x48,60x40,48x32
Module Size	480mm x 320mm(W x H)
Module Weight	1.5kg

960mmx960mm Cabinet Specification

Material	Profile aluminum
Pixel Pitch	4mm,5mm,5.7mm,6.67mm,8mm,10mm
Resolution	240x240,192x192,168x168,144x144,120x120,96x96
Cabinet Size	960mm x 960mm(W x H)
Cabinet Weight	26kg

Outdoor Full Color LED Video Wall Cabinet High Resolution LED Large Screen Display 0

Packing

Plywood case/Honeycomb carton/Flight case option

After-sale Service

If need any help during using LongRun display, please for free to contact your Salesman

Thank you for choosing Shenzhen LongRun Optoelectronic Co., Ltd.’s products. For a better and

faster understanding of the product, please read this specification carefully before using our products.

We are pleased that this document has helped and facilitated your understanding and use of the

product. We strive to be accurate and reliable in the specification, content may be modified or changed

at any time without notice. If you have any questions or have any suggestions, please contact us. We

will try our best to support you when you encounter any problems in use. Thank you again for using

LongRun products.
