Home ProductsLED Video Wall DisplayP4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen

P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen

P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen
P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen
P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen
Basic Information
Place of Origin: Guangdong,China
Brand Name: Longrun LED
Model Number: D-pro
Minimum Order Quantity: 6 pieces
Price: USD600-900/Square meter
Packaging Details: Flight case
Delivery Time: 25-30 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 pieces per month
Contact Now
Pixel Pitch（mm）: 4mm LED Configuration: White SMD2727
Physical Density（dot/m²）: 40000 Module Size(W×H×D)mm: 480x320x46.8
Cabinet Size (W×H×D)mm: 960x960x82.3 Cabinet Material: Profile Aluminum
Scanning Mode（Scan）: 1/10 Grey Scale（Bit）: 14/16
Protection Level: IP66 Brightness(Customized): 4500-5000
Highlight:

P10 Outdoor LED Billboard

,

Advertising Waterproof LED Screen

Product Description

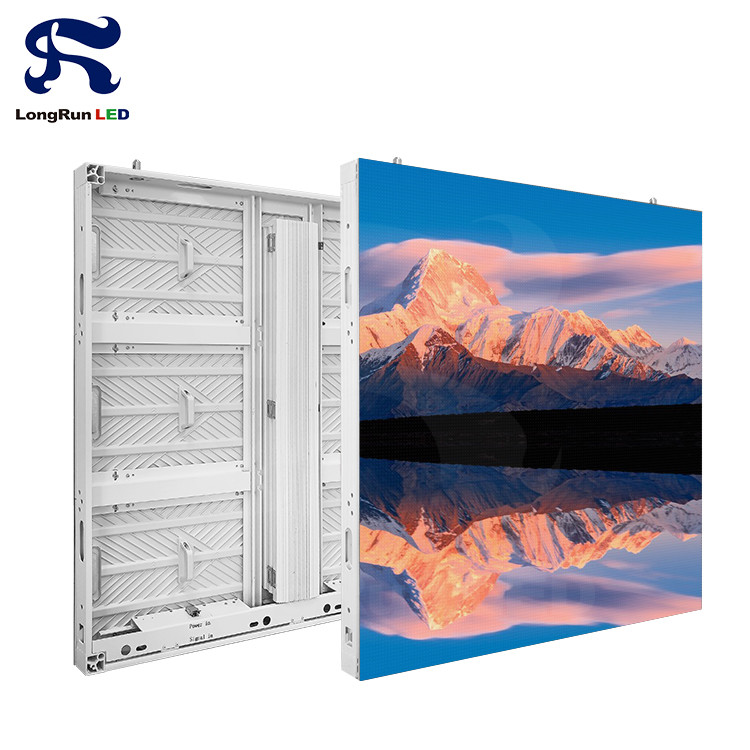

This waterproof series is LongRun LED back installation and back service products, using 480x320mm
die-casting waterproof module, with 960x960mm profile aluminum cabinet.This series of products are
suitable for various outdoor application fields of different environmental brightness, with high brightness,
high contrast, gorgeous picture, high protection ability, excellent weather resistance, long service life.

1 Application Scope
This technical specification is only applicable to LongRun outdoor Guardian series
product. Module size:480x320mm,its supporting profile aluminum cabinet.

2 Product Features

-- 480x320mm module size,compatible with: DH5-Pro,DH5.7-Pro,DH6.67-Pro,DH8-Pro,DH10-Pro

960x960mm cabinet size;

-- The frame is spliced in full profile structure, with high overall processing precision and high strength, which
saves the traditional installation steel structure;
-- Dual-voltage power supply, energy consumption than traditional outdoor products to save more than 30%;
-- With light cabinet, easier installation and transportation;
-- With die-casting aluminum module,optional contact cooling of the ICs keeps the light board cooler;
-- Fully hard-wired cabinet and waterproof up to IP66.

480x320mm Module Specification
Series
LR-D-PRO Series
Pixel Pitch
4mm,5mm,5.7mm,6.67mm,8mm,10mm
Resolution
120x80, 96x64,84x56,72x48,60x40,48x32
Module Size
480mm x 320mm(W x H)
Module Weight
1.5kg



P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen 0

960mmx960mm Cabinet Specification
Material
Profile aluminum
Pixel Pitch
4mm,5mm,5.7mm,6.67mm,8mm,10mm
Resolution
240x240,192x192,168x168,144x144,120x120,96x96
Cabinet Size
960mm x 960mm(W x H)
Cabinet Weight
26kg



P4 P5 P6 P8 P10 Outdoor LED Billboard Advertising Waterproof LED Screen 1



Company profile

Founded in 2013, Shenzhen Longrun Optoelectronic Co., Ltd. Is a high-tech enterprise of LED display
integrating R&D,production and sales.Headquartered in Shajing Longrun Optoelectronic Park, Longrun
registers with a capital of 30 million yuan,covers an area of more than 30,000 square meters, has an
independent purification plant, research and development base,as well as the industry's most advanced
production and testing equipment.
Based on meeting customers’ needs and high lighting high tech as a core, it established a full product
ecosystem : indoor COB commercial display, Strip shelf display, Outdoor common-cathode, Rental and
Fixed installation full color screen.
LongRun focus on building long term, reliable, win-win relationship with customers and partners with
dedicated employer, strong R&D ability, prompt market response, market-oriented creative products,and
efficient service
