| Place of Origin: | Guangdong,China |
|---|---|
| Brand Name: | LongRunLED |
| Model Number: | Indoor fixed display |
| Minimum Order Quantity: | 2pcs |
| Price: | 800USD/pc |
| Packaging Details: | Plywood case/Fight case |
| Delivery Time: | 15~25days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability: | 200pcs/day |
| Application: | Indoor Fixed Led Display | Color: | Full Color RGB |
|---|---|---|---|
| Pixel Pitch: | 0.93/1.25/1.56/1.87/2.5mm | Module Size: | 150x168.75mm |
| Cabinet Size: | 600x337.5mm | Material: | Die Casting Aluminum |
| Brand Name: | LongRunLED | ||
| High Light: | 0.93mm Indoor Fixed LED Display,1.56mm Indoor Fixed LED Display,0.93mm Small Pitch Led Display |
||

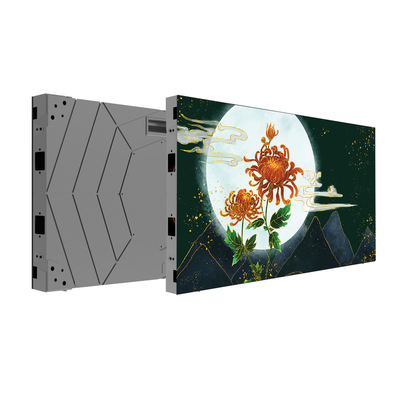

Full Color RGB 0.93mm Indoor Fixed LED Display Wide Viewing Angles
P0.93 P1.25 P1.56 P1.87 600x337.5mm Die-Cast Aluminum Indoor Fixed Cob Led Display Redundancy Design
|
Model |
P0.9375 |
P1.25 |
P1.56 |
|
Pitch(mm) |
0.9375 |
1.25 |
1.5625 |
|
Density(dot/sqm) |
1,137,778 |
640,000 |
409,600 |
|
Pixel Configuration |
1RGB |
1RGB |
1RGB |
|
Module Size(mm*mm) |
150*168.75 |
150*168.75 |
150*168.75 |
|
Dot Rank(px*px) |
160*180 |
120*135 |
96*108 |
|
Scanning Method |
1/60 |
1/45 |
1/36 |
|
Grayscale(bit) |
14 |
14 |
14 |
|
Refresh Rate(Hz) |
3840 |
3840 |
3840 |
|
Driving Method |
Constant Current Drive |
||
|
Horizontal Viewing Angle |
>=170 |
>=170 |
>=170 |
|
Vertical Viewing Angle |
>=170 |
>=170 |
>=170 |
|
Cabinet Weight(kg) |
6 |
6 |
6 |
|
Cabinet Size(mm*mm*mm) |
600*78*337.5 |
600*78*337.5 |
600*78*337.5 |
|
Cabinet Resolution(px*px) |
640*360 |
480*270 |
384*216 |
|
Cabinet Material |
Die-casting Aluminium |
||
|
Color(M) |
>16.7 |
>16.7 |
>16.7 |
|
Output Voltage(V) |
AC110-220V+/-10% |
||
|
Repetition Frequency(Hz) |
50-60 |
||
|
Proof Level |
IP45 |
||
|
Usage Environment |
Indoor |
||
|
Working Temperature(°C) |
-40°C - +60°C |
||
|
Storage Humidity(RH) |
40%-60% |
||
|
Lifespan(H) |
100,000 |
||
600mmx337.5mm die-casting aluminum cabinet, compatible pitch M0.93/M1.25.
The Horizontal and vertical viewing angles reach 170 degrees, wider than the SMD screen.
Big high-quality chips, pure gold bonding wires, and pads are immersed gold technology, which is more reliable.
High refresh rate at low gray, refresh rate ≧3840HZ, Greyscale ≧14Bit.
Excellent heat dissipation and low light decay, PCB board dissipates heat directly, extended service life.
Module face IP65,water-proof, dust-proof, anti-oxidation, anti-static, anti-impact.
16:9 ratio cabinet design,2K/4K/8K dot to dot match resolution,100% front service.
P3 LED Module Production line:
2018 LONGRUN hot sale P3 indoor led display module
Reply to your inquiry in 12 hours.
Experienced staff answer all your queries in fluent English.
Customized design is available, OEM & ODM are welcomed.
The exclusive and unique solution can be provided to our customers by our well-trained and professional staff.
|
Q: What is the brightness, viewing angle, and wavelength of the LED? |
|
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. The symbol is Iv.
|
|
Q: What is the dominant wavelength? Please specify the ranges of wavelength in red, green, and blue colors respectively. |
|
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with a wavelength of 620-630nm (red), 520-530nm (green), and 460-470nm (blue), in fact, mixed in a particular proportion, can get the pure white. That is, in the display field, people use luminous materials with the above wavelength to make "compounded" white more natural. In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
|
|
Q: Which chip vendors are you buying from? |
|
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
|
|
Q: What is the chip size you're using for outdoor display? How about an indoor display? |
|
A: For outdoor display, we're using a 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
|
|
Q: How much will the brightness of LED drop down after 1000hrs? |
|
A: Based on the result of the aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
|
