Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen

Basic Information
Place of Origin: China
Brand Name: LongRun
Certification: CE
Model Number: FH5.92/ FH8
Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Plywood cases
Delivery Time: 18 - 23 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sqm / month
Usage: Outdoor Pixels: FH5.92 / FH8
Module Size: 320x320mm Cabinet Size: 640*960mm
Application: Outdoor Billboard, Outdoor Advertising LED Screen, LED Sign , LED Screen, Giant Screen Product Name: Common-cathode P5.92 P8 Front Service Outdoor Fixed LED Display Screen
Brightness: 6000cd/sqm Refresh RateLife Span: >1920Hz
Working Temperature: -40℃~+80℃
High Light:

Anti Oxidation Front Service LED Display

,

P8 Front Service LED Display

,

Die Casting P8 Outdoor LED Screen

P5.92 P8 Common Cathode Outdoor Fixed Front Service Commercial Die-Casting Aluminum Led Display



Product Features

Product Technical Parameter



Model No. FH5.92 FH8
Pixel Pitch 5.92 8
LED Lamp SMD2727 SMD3535
Density 28476 15625
Module Size 320x320 320x320
Module Resolution 54x54 40x40
Module Material Die-casting+plastic Die-casting+plastic
Cabinet Size 640x960 640x960
Cabinet Material Die-casting aluminum Die-casting aluminum
Scanning Mode 1/7 1/5
Flatness ≤0.3
Grey Scale 14
Protection Level IP65
Installation/Service Method Front and Back Installation/Front and Back Service
Brightness 6000-6500
Horizontal/Vertical View Angle ≥140°/≥120°
Contrast Ratio ≥5000:1
Module Max Current DC 6A+10A
Module Input Voltage DC 3.2V+4.2V
Standard Receiving Card A3S
Refresh Frame Frequency 50/60 Hz
Network Connection Port Customized HUB



Module Pictures

Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen 0

Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen 1

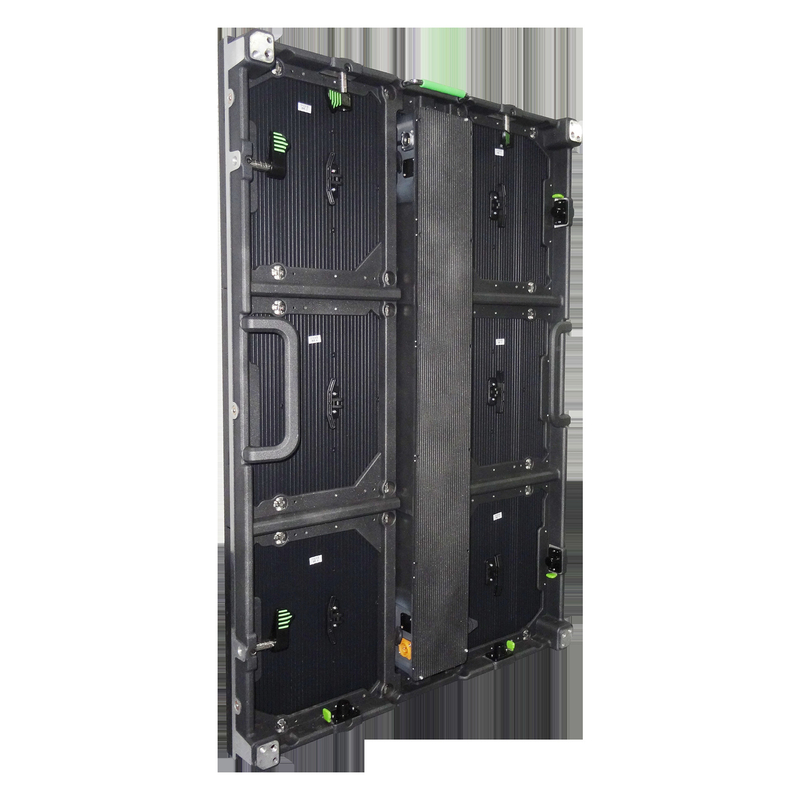

Cabinet Pictures

Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen 2

Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen 3



Exhibitions



Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen 4



Logistic and payment



Anti Oxidation Front Service LED Display Die Casting Aluminum P8 Outdoor LED Screen 5



FAQ



Q: What is the brightness, viewing angle, and wavelength of the LED?



A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. The symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of the corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize



Q: What is the dominant wavelength? Please specify the ranges of wavelength in red, green, and blue colors respectively.



A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with a wavelength of 620-630nm (red), 520-530nm (green), and 460-470nm (blue), in fact, mixed in a particular proportion, can get the pure white. That is, in the display field, people use luminous materials with the above wavelength to make "compounded" white more natural. In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color



Q: Which chip vendors are you buying from?



A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan



Q: What is the chip size you're using for outdoor display? How about an indoor display?



A: For outdoor display, we're using a 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted



Q: How much will the brightness of LED drop down after 1000hrs?



A: Based on the result of the aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
