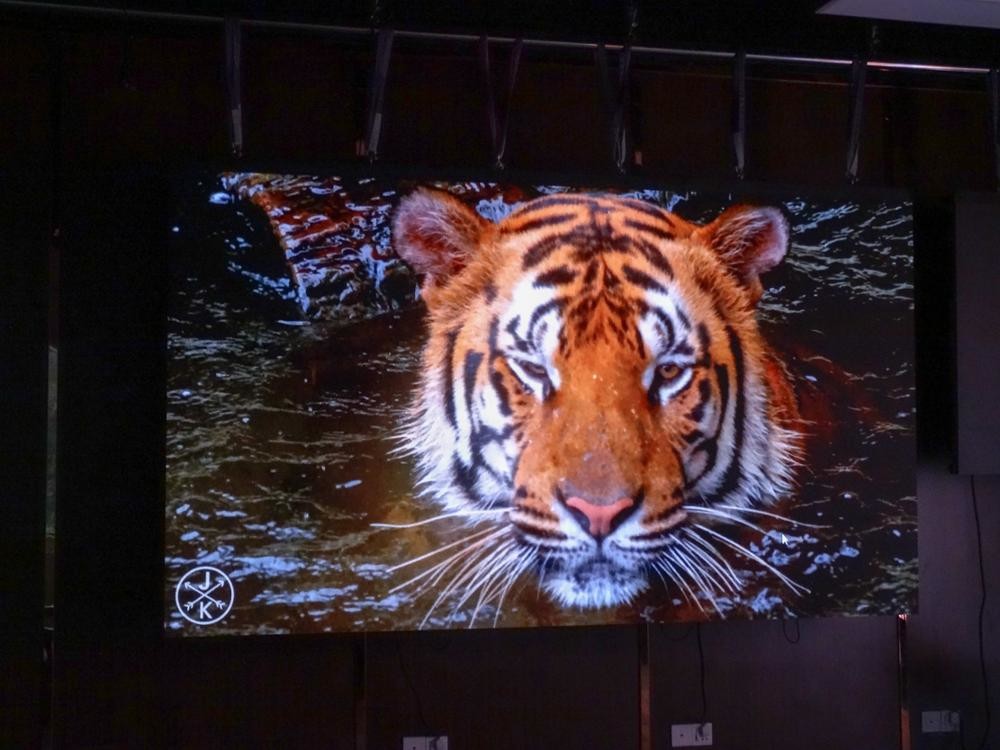

COB P0.93 P1.25 P1.56 P1.87 Indoor Fixed LED Display Full Color RGB

Basic Information
Place of Origin: Guangdong,China
Brand Name: LongRunLED
Model Number: Indoor fixed display
Minimum Order Quantity: 2pcs
Price: 800USD/pc
Packaging Details: Plywood case/Fight case
Delivery Time: 15~25days
Payment Terms: T/T, L/C, Western Union, D/A, D/P
Supply Ability: 200pcs/day
Application: Indoor Fixed Led Display Color: Full Color RGB
Pixel Pitch: 0.93/1.25/1.56/1.87/2.5mm Module Size: 150x168.75mm
Cabinet Size: 600x337.5mm Material: Die Casting Aluminum
Brand Name: LongRunLED
High Light:

P1.87 Indoor Fixed LED Display

,

P1.56mm Indoor Fixed LED Display

,

P1.87 COB LED Display

COB P0.93 P1.25 P1.56 P1.87 Indoor Fixed LED Display Full Color RGB



Indoor COB P0.93 LED 4K TV Panel Display



Product Description
Model P0.9375 P1.25 P1.56
Pitch(mm) 0.9375 1.25 1.5625
Density(dot/sqm) 1,137,778 640,000 409,600
Pixel Configuration 1RGB 1RGB 1RGB
Module Size(mm*mm) 150*168.75 150*168.75 150*168.75
Dot Rank(px*px) 160*180 120*135 96*108
Scaning Method 1/60 1/45 1/36
Grayscale(bit) 14 14 14
Refresh Rate(Hz) 3840 3840 3840
Driving Method Constant Current Drive
Horizontal Viewing Angle >=170 >=170 >=170
Vertical Viewing Angle >=170 >=170 >=170
Cabinet Weight(kg) 6 6 6
Cabinet Size(mm*mm*mm) 600*78*337.5 600*78*337.5 600*78*337.5
Cabinet Resolution(px*px) 640*360 480*270 384*216
Cabinet Material Die-casting Aluminium
Color(M) >16.7 >16.7 >16.7
Output Voltage(V) AC110-220V+/-10%
Repetition Frequency(Hz) 50-60
Proof Level IP45
Usage Environment Indoor
Working Temperature(°C) -40°C - +60°C
Storage Humidity(RH) 40%-60%
Lifespan(H) 100,000


M





Our Advantage

2018 LONGRUN hot sale P3 indoor led display module

COB P0.93 P1.25 P1.56 P1.87 Indoor Fixed LED Display Full Color RGB 1

2







Company Information

2019 LONGRUN hot sale P3 indoor led display module



P3 LED Module Production line:



webwxgetmsgimg (5).jpg webwxgetmsgimg (4).jpg
webwxgetmsgimg.jpg LongRun LED Facotry (10).JPG
webwxgetmsgimg (14).jpg LongRun LED Facotry (12).JPG
Our Services

2018 LONGRUN hot sale P3 indoor led display module

  1. Reply your inquiry in 12 hours.
  2. Experienced staffs answer all your query in fluent English.
  3. Customized design is available, OEM & ODM are welcomed.
  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.



FAQ

2018 LONGRUN hot sale P3 indoor led display module2018 LONGRUN hot sale P3 indoor led display module

Q: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
Q: What is the chip size you're using for outdoor display? How about indoor display?
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
Q: How much will the brightness of LED drop down after 1000hrs?
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
