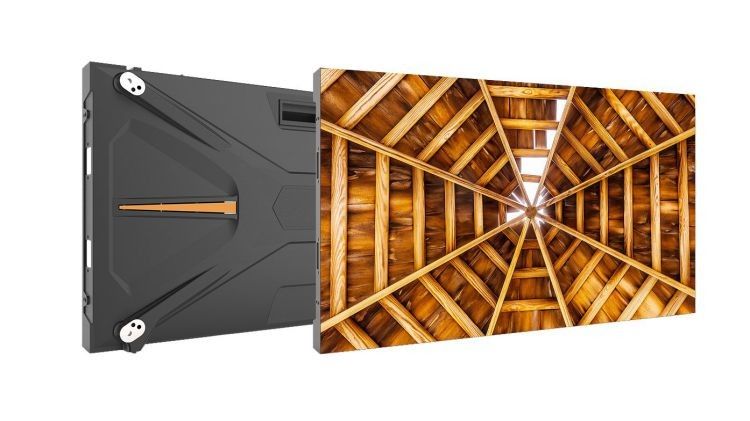

IP45 P1.25 P1.8 SMD Indoor LED Screen Pantalla LED Video Wall

Basic Information
Place of Origin: China
Brand Name: LongRun
Certification: CE
Model Number: P1.25 P1.56 P1.87 P2.5
Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Flight cases / Plywood cases
Delivery Time: 18 - 23 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sqm / month
Package: SMD / GOB Oprion Pitch: P1.25 /P1.56/ P1.87/ P2.5
Cabinet Dimension: 600*337.5mm Refresh Rate: 3840HZ
Viewing Angle: 160°/140°(H/V) Application: Livestream, Broadcast , Meeting Room, Led Video Wall
Product Name: HD SMD P1.25 P1.8 P2.5 Indoor LED Screen Modular Led Display Pantalla LED Video Wall Tube Color: Full Color
Scan Mode: 1/30, 1/45, 1/48
High Light:

P1.8 SMD Indoor LED Screen

,

IP45 SMD Indoor LED Screen

,

P1.25 Pantalla LED Video Wall



HD SMD P1.25 P1.8 P2.5 Indoor LED Screen Modular Led Display Pantalla LED Video Wall




Product Description



Model

P1.25

P1.5625

Pitch(mm)

1.25

1.5625

Density(dot/sqm)

640,000

409,600

Pixel Configuration

1RGB

1RGB

Module Size(mm*mm)

150*168.75

150*168.75

Dot Rank(px*px)

120*135

 96*108

Scaning Method

1/30

1/48

Grayscale(bit)

14

14

Refresh Rate(Hz)

3840

3840

Driving Method

Constant Current Drive

Horizontal Viewing Angle

>=170

>=170

Vertical Viewing Angle

>=170

>=170

Cabinet Weight(kg)

6

Cabinet Size(mm*mm*mm)

600*78*337.5

Cabinet Resolution(px*px)



384*360

Cabinet Material

Die-casting Aluminium

Color(M)

>16.7

>16.7

Output Voltage(V)

AC110-220V+/-10%

Repetition Frequency(Hz)

50-60

Proof Level

IP45

Usage Environment

Indoor

Working Temperature(°C)

-40°C - +60°C

Storage Humidity(RH)

40%-60%

Lifespan(H)

100,000









Our Advantage



Standard cabinet size:600*337.5mm,16:9 aspect ratio. HD video and picture dot to dot matching. Free splicing into 2K/4K/8K. 27’ single cabinet size is for replacing 54’ and 108’ LCD display. Adopt 64 scan high refresh rate diving IC, smooth and delicate display performance.







1. Module size:150x168.75mm, compatible pitchM1.25/M1.56/M1.87/M2.5.

2. Cabinet size:600x337.5mm,16:9 aspect ratio.

3. Floating connection design between module and cabinet, module could be fine-tuned.

4. Support double backup of power supply and control system.

5. Front access and front service, saving space and cost






 Front Maintenance
1. Front maintenance within 3 second,you can easier take out module within 3 seconds with professional tool,reduce maintenance costs.
2. Module, power supply and receiving card,can be front maintained. *Save time, labor & cost,Magnetic front service.
3. Disassemble a module in 1 second.

 IP45 P1.25 P1.8 SMD Indoor LED Screen Pantalla LED Video Wall 210_.jpg



Smart Module
Horizontal & vertical detection
Intelligent horizontal display module immediately shows the tilt angle when the individual cabinets are not leveled, so the installers can adjust in time according to the deviation data.
9_
Visible flatness adjustment
When the cabinet is installed, the horizontal and vertical angles of the cabinet can be displayed in real time. The staff can adjust the inclination according to the display data in time for the best cabinet position, improved flatness, and better visual effect.




Cable-less connection
Adopt hard plug connection between the cabinets.
Cable-less between the power supply and the HUB board, and between HUB board and module.
High Efficiency with Front & Rear Maintenance, both interior and external looks neat and clean.

 M 600337 20



 2K/ 4K /8 K dot to dot matching






Our Related Cases


Company Information

LED Module Production line:



webwxgetmsgimg (5).jpg webwxgetmsgimg (4).jpg
webwxgetmsgimg.jpg LongRun LED Facotry (10).JPG
webwxgetmsgimg (14).jpg LongRun LED Facotry (12).JPG
Our Services

 2018 LONGRUN hot sale P3 indoor led display module

  1. Reply your inquiry in 12 hours.
  2. Experienced staffs answer all your query in fluent English.
  3. Customized design is available, OEM & ODM are welcomed.
  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.



FAQ

 2018 LONGRUN hot sale P3 indoor led display module2018 LONGRUN hot sale P3 indoor led display module

Q: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
Q: What is the chip size you're using for outdoor display? How about indoor display?
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
Q: How much will the brightness of LED drop down after 1000hrs?
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
