P1.5 P1.87 P2 P2.5 Indoor Fixed LED Display HD Video Wall Screen
Product Details Quick Reviews
1. Application: Indoor Fixed LED Display HD Video Wall Screen
2. Pixel Pitch: P1.5 P1.87 P2 P2.5
3. Cabinet size: 480*540mm
Product Features
Using 240mmx180mm modules with 480mmx540mm die-casting aluminum cabinet. The cabinet is installed with an
ultra-light and stable back bracket, which can meet the installation needs of various indoor application scenarios, front and
rear maintenance are optional, saving installation space and maintenance channels to the greatest extent.
1. Available pitch: P1.5 P1.87 P2 P2.5. cabinet size:480*540mm
2. Total front service and front installation, which means easy to install and maintain.
3. Special cabinet size design:480*540mm, could be a dot to dot matching. Could be exact 2k&4K
4. Empty cabinet and back profile bracket could be in stock, and when you have a project, could purchase led modules. which means great service and the best lead time for your customers.
⚫ 240mm x 180mm module, compatible pitch: P1.5 P1.87 P2 P2.5
⚫ Module ratio 4:3, 2K/4K dot to dot match.
⚫ 1515 pure black LED lamp, high refresh rate, high gray level, high contrast ratio, high definition, richer color
levels.
⚫ High-precision die-casting aluminum cabinet, splicing the screen to 16:9, play full HD movies and TV without
zoom.
⚫ Front and rear maintenance are optional, and support multiple installation methods to facilitate quick installation
and disassembly.COLOR INDOOR DISPLAY SPECIFICATION
Product Technical Parameter
| P1.5 P1.87 P2 P2.5 Indoor Fixed LED Display HD Video Wall Screen |
| Item |
Specification |
Module Picture |
| Series |
Moon Elf series module |
 |
| Material |
Plastic |
| Pixel Pitch |
1.875mm, 2mm, 2.5mm,3mm |
| Resolution |
128x96, 120x90, 96x72,80x60 |
| Module Size |
240mmx180mm (W x H) |
| Module Weight |
470g,457g,454g,451g |
| P1.5 P1.87 P2 P2.5 Indoor Fixed LED Display HD Video Wall Screen |
| Item |
Specification |

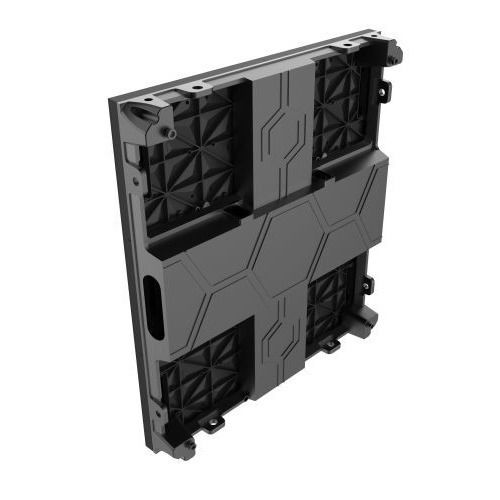

Cabinet Picture |
| Series |
Moon Elf series cabinet |
|
| Cabinet Material |
Die Casting Aluminum |
| Pixel Pitch |
1.875mm, 2mm, 2.5mm, 3mm |
| Resolution |
256x288, 240x270, 192x216,160x180 |
| Cabinet Size |
480mmx540mm (W x H) |
| Cabinet Weight |
5.6kg |
Product Pictures
Installation Instruction
Package
FAQ
| Q: What is the brightness, viewing angle and wavelength of the LED? |
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize |
| Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively. |
| A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color |
| Q: Which chip vendors are you buying from? |
| A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan |
| Q: What is the chip size you're using for outdoor display? How about indoor display? |
| A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted |
| Q: How much will the brightness of LED drop down after 1000hrs? |
| A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8% |
Remarks
1.The price depends on the quantity. We can offer you the best competitive price at the market with the same even better quality
2. Your inquiry will be replied by well-trained and experienced staffs in 24 hours
3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
4. Help you design OEM&ODM or any your customized lightings and put into production
5. Distributorship are offered for your unique design and some our current models
6. Your sales area, ideas of design and all your private information will be well protected
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
