P2.604 500mmx500mm Indoor Led Screen For Adversting

Basic Information
Place of Origin: GuangDong,China
Brand Name: LongRun
Model Number: MH2.604-32S
Minimum Order Quantity: 6
Price: $340/piece
Packaging Details: Wooden/Flightcase/Plywood case
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 1000
Application: Indoor Adversting Pixel Pitch: 2.604
Panel Size: 250mm*250mm Cabinet Size: 500mm*500mm
Scanning Mode: 32S Brightness: 700~900cd/sqm
Grey Scale: 14Bit Refresh Rate: >3840HZ
IC: CHIPONE ICN2053+ICN2012
High Light:

Indoor P2.604 LED Display

,

500mmx500mm indoor led screen

,

900cd/sqm Adversting indoor led screen

Indoor P2.604 Stage Background LED Display 500mm*500mm LED Screen





1:Product Description

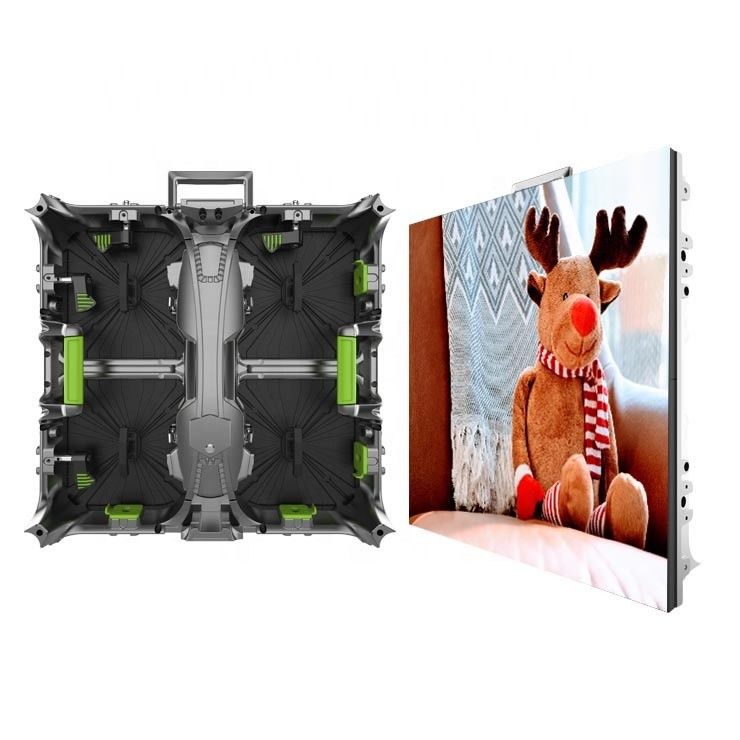

         Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.

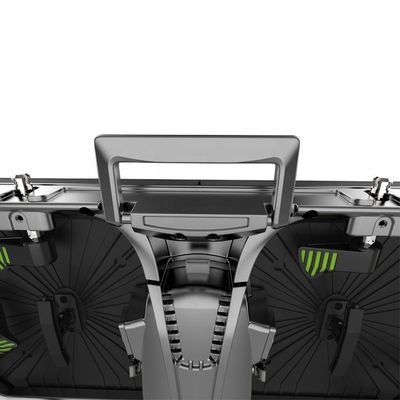

         High-precision die-cast aluminum cabinet, seamless unit box.



         New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.



          Total hard connection ,easy to take off the power supply and receiving card.



         Module with touchable back screw , uncessary to prepare tool, easy to fix and take off modules by hand.



        Corners with small protectors, protect pixel while moving.

2:Specifications



Pixel Pitch(mm) P2.604
LED Type SMD1515
Module Size 250*250mm
Scanning 32s
Brightness 500-1000cd
IC CHIPONE ICN2053+ICN2012
Grey Scale 16bit
Refresh Rate 3840HZ
Cabinet Size 500*500*85mm
Cabinet Weight 6 kgs
Protection Level IP43
Working Temperature -20℃ - +40℃
Operation Humidity 10%-90%RH



3:Cases

P2.604 500mmx500mm Indoor Led Screen For Adversting 0

P2.604 500mmx500mm Indoor Led Screen For Adversting 1

P2.604 500mmx500mm Indoor Led Screen For Adversting 2
