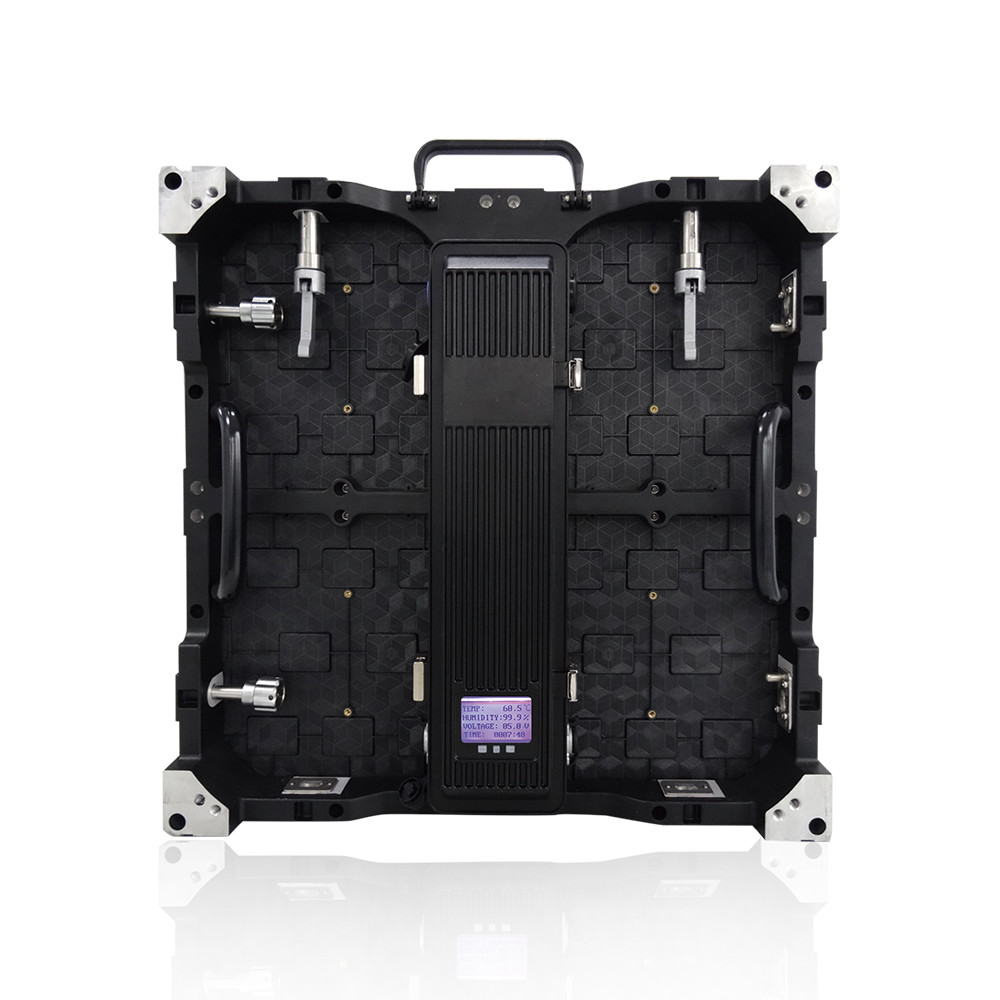

Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet

Basic Information
Place of Origin: Guangdong, China
Brand Name: Longrun
Model Number: 3.91mm,4.81mm
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Rental led display wall for rental use flightcase , carton packing is recommended.
Supply Ability: 1000 Piece/Pieces per Week
Screen Dimension: Customized Size LED Type: 2121SMD
Pixels Per Sqm: 65536 Dots Module Size: 250*250 Mm
Brightness: >=1800cd/sqm Scan Method: 1/16 Scan
Fresh Rate: >= 24000Hz Grey Level: 16bit
Life Span: >100,000 Hours View Distance: 10~80 M
Usage: Indoor Tube Chip Color: FULL COLOR
Display Function: Video ,text , Grafic Etc Pixels: 3.91
Port: Shenzhen
High Light:

stage rental led display

,

events led display

Ultra Light P3.91 LED Rental Screen With Die- Casting Aluminum Cabinet





Pixel Pitch :3.91mmPixel Density :65536dots/m2
Brightness :≥2000 cd/m2Viewing Angle :H:160°, V:120°
LED Specification :SMD 1800Pixel Configuration :1R1G1B
Module Size :250×250mmModule Pixel Density :64×64 dots
Driving Method :1/16 scanRefresh Rate :≥2400Hz
Gray/Color :8192Gray, Color 1billionControl System :Synchronous/off-line control system, fiber transmission
Working Voltage :AC 110/220VWorking Temperature :-20°C~50°C
Max. Power Consumption :<400W/m2Life-span :>100,000hrs
MTBF :>10,000hrsDead Dot Rate :<0.0002



Features

Light:Cabinet size 500mmX500mmX80mm, and weight 8kg/pc. Only one hand can hold it, assembly time saved.

Thin: Die-cast aluminum design, high intensity, high tenacity, high precision, unchangeable, 80mm as the thickness, normal cabinet is >130mm.

Fast: Fast locks on the four edge of the cabinet, only 180 degree rolling will lock the closed two cabinets with high precision. Easy to assemble and disassemble the cabinets, fast, reliable and beautiful, it means true quick-assembling.

Easy: Modular design, easy to assembly and maintain.

Capacity:New design with exclusive cabinet, suitable for P3.91,P4.81 or more.

Low: Wonderful design for natural heat releasing, no need for fans or air-conditioner, low noise, low structure cost because of the light weight of cabinets, low power dissipation, more cost saved.

Materials & Adavantages:
1. First-class LED chip: Epistar from Taiwan.

2. With pure golden wire connection in LED.

3. Grand A row material for module frame and mask.

4. 4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Long-term Brightness capacity throughout product lifetime.

8. Three years warranty.


Detailed Images

Rental led display wall with modules Image:
Modules image:
Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet 0




  Rental led display wall for installation wasys:

Installation ways

----1. Standing installation
Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet 1

----2.Hanging installation

 Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet 2









Connection skecthmap
Connection skecth map

Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet 3





Cabinet components
Cabinet components

Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet 4
Ultra Light P3.91 LED Rental Screen With Die Casting Aluminum Cabinet 5
