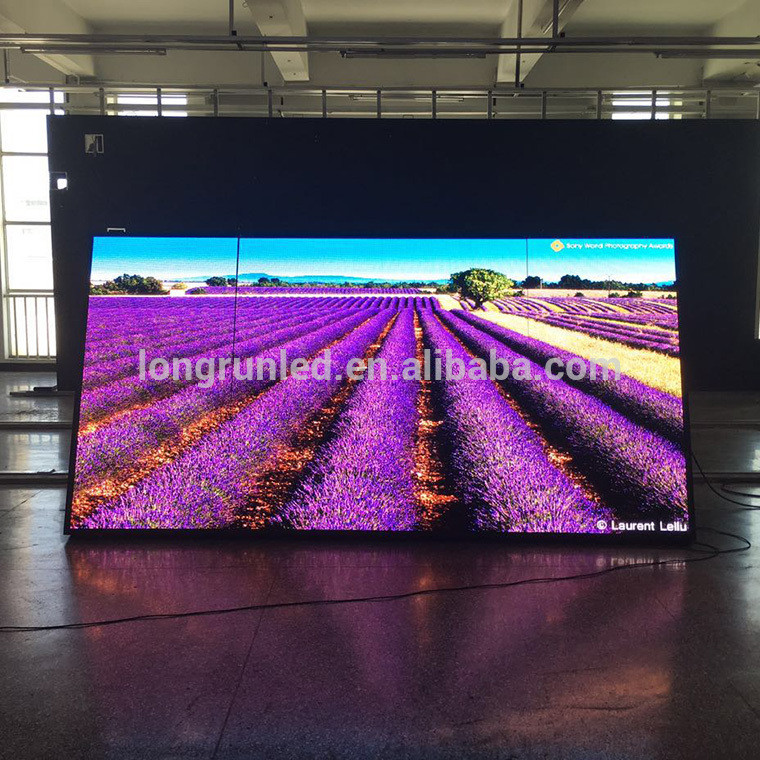

Fast Connection Front Service Fixed Led Panel , HD P4 Led Screen Epistar Chip Type

Specifications

Module specification
LED configuration	3 in 1
Pixel pitch	P4
LED lamp	SMD1919
Module resolution	48*48
Module size	192*192mm
Cabinet specification
Module array	4*8pcs
Cabinet resolution	192*384
Cabinet size	768*1536mm
Display area	1.18sqm
Flatness	<0.2
Optical specification
Brightness	2800-3000cd/sqm
Scan mode	1/8s
Refresh rate	1920Hz
Horizontal viewing angle	140degree
Vertical viewing angle	120degree
Contrast ratio	8000:1
Eletrical specification
Cabinet power consumption	1180w
Average power consumption	390w
Power supply	AV 110V/220V (50/60Hz)
Operation specification
Lifespan	100,000 hours
Operation temperature	-10~+60
Storage temperature	-10~+50
Operation humidity	10%~80%
Storage humidity	40%~60%

Product Description

√ Low brightness, high contrast ratio 8000:1, can play the real color under direct sunlight.

√ Environmental protection. Can perfectly reduce light pollution problem, good for eyes.

√ Front service to meet wall mounted installation. Easy for maintenance.

√ High quality thermal conductivity material for cabinet back, excellent ventilated design for heat dissipation, improving the stability and lifespan of screen.

Successful Case Show

Fast Connection Front Service Fixed Led Panel , HD P4 Led Screen Epistar Chip Type 0

Company Information

Shenzhen Longrun LED Optelectronic CO.,LTD, a professional LED display manufacturer engaging in R&D, manufacture and sales,which started its business since 2009. Its factories locate in Huazhan Science & Technology Industrial Park, West Shangxin Industrial Park, which are neotype high standard industrial parks in Baoan, Shenzhen. Two production bases are conjunct with each other, cover an area of 12000 square meters, total register capital reach 10 million RMB. Being one of the domestic leading suppliers inLED product application and solution, Longrun has separate purification plant, R&D base, and the industry’s most advanced automated production and testing equipment. It dedicates in providing terminal clients with LED applications of high quality and performance and also with the most effective service.

Fast Connection Front Service Fixed Led Panel , HD P4 Led Screen Epistar Chip Type 2

Fast Connection Front Service Fixed Led Panel , HD P4 Led Screen Epistar Chip Type 4

Our Services

Reply your inquiry in 12 hours.
Experienced staffs answer all your query in fluent English.
Customized design is available, OEM & ODM are welcomed.
Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.

FAQ

Q: What is the brightness, viewing angle and wavelength of the LED?

A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize

Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.

A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color

Q: Which chip vendors are you buying from?

A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan

Q: What is the chip size you're using for outdoor display? How about indoor display?

A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted

Q: How much will the brightness of LED drop down after 1000hrs?

A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%

Tag:

Place of Origin:	Guangdong, China
Brand Name:	OEM
Model Number:	LR-F-PH4

Minimum Order Quantity:	1 Piece
Price:	Negotiable

Product Name:	Outdoor P4 Led Display	Pixel Pitch:	4mm
Pixel Configuration:	1RGB	Pixel Density:	62,500 Dots/m2
LED Chip:	Epistar	LED Lights:	SMD 11919
Cabinet Size:	768mm*1536mm	Cabinet Resolution:	192*384
Brightness:	2800~3000cd/m2	Refresh Rate:	1920Hz
Screen Dimension:	Customized	Tube Chip Color:	FULL COLOR
Usage:	OUTDOOR	Display Function:	Video, Animation, Graphics
Pixels:	4mm	Selling Units:	Single Item
Single Package Size :	77X154X16 Cm	Single Gross Weight:	52.0 Kg
Package Type:	Polywood Carton
Highlight:	stadium perimeter led display , roadside led display
