1. Product Description

LongRun outdoor S series product, standard 500x500mm, 500x1000mm cabinet size, Chipone driving IC, refresh rate reach to 3840HZ. Cabinet adopts curve fast locks, can realize the arc splicing effect of 5-10 degrees of internal radian and 5 degrees of external radian.Stable cabinet structure, no deformation, the contact surface between cabinet is treated by anodic oxidation, which is resistant to collision and friction, satisfying multiple installation and disassembly in rental events

2. Product Features

• Module size:250mm*250mm, compatible pitch: SH 2.97, SH 3.91,SH4.81
• 500x500mm, 500mm*1000mm cabinet, stable die-casting alloy structure, not easy to deform
• Cableless and pluggable power supply, easy to change.
• Intelligent cabinet handle lock, single operation design, time-saving and labor-saving

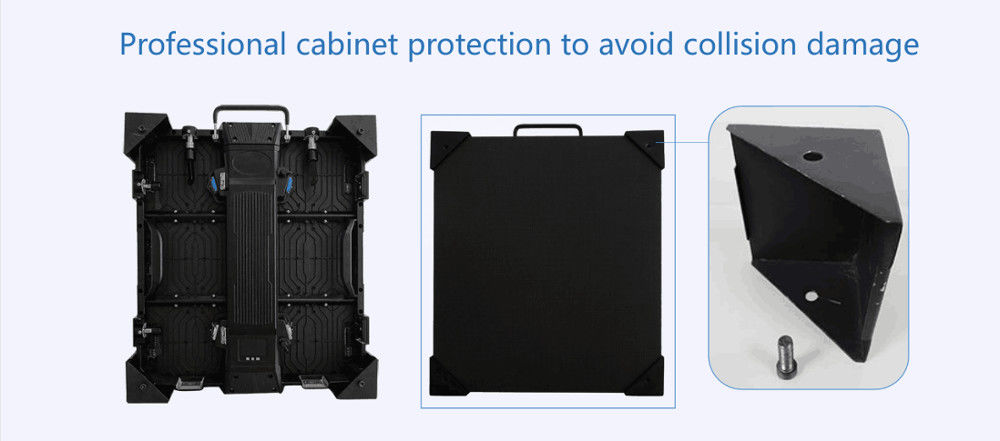

• Foldable all-around corner protectors, effectively protect the edge leds and modules.
• Adopt high end big chip pure black leds, ultra-high contrast, high grey scale and high refresh rate；
• Curved function cabinet option, no need curved lock, can realize arc/ special-shaped, suitable for different rental events.

3. 250mmx500mm Module Specification

Item	Specification	Module Picture
Series	Ourdoor S Series Module
Material	Plastic
Pixel Pitch	2.97mm,3.91mm,4.81mm
Resolution	84*168,64*128,52*104(W*H)dot
Module Size	250*500(W*H)mm
Module Weight	1.25kg

4. 500mmx500mm/1000mm Cabinet Specification

Item	Specification
Series	Outdoor S Series Cabinet
Material	Die-casting aluminum
Pixel Pitch	2.97mm,3.91mm,4.81mm
Resolution	168*168,128*128,104*104/ 168*336,128*256,104*208(W*H)dot
Cabinet Size	500*500*83.5,500*1000*83.5(W*H*D)mm
Cabinet Weight	7.48kg/11.97kg
