Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution

Basic Information
Place of Origin: Guangdong, China
Brand Name: Longrun
Model Number: PH10
Minimum Order Quantity: 2 Square Meters
Price: Negotiable
Led Screen Type: Outdoor LED Sign LED Type: SMD3535
Pixels Per Sqm: 10000 Dots Module Size: 320*160 Mm
Brightness: >= 7500cd/sqm Scan Method: 1/2
Fresh Rate: >= 1920Hz Certificate: CE
Life Span: >100,000 Hours View Distance: 10~80 M
Usage: OUTDOOR Tube Chip Color: FULL COLOR
Display Function: Video Pixels: 10mm
Screen Dimension: 960*960mm Selling Units: Single Item
Single Package Size : 100X34X114 Cm Single Gross Weight: 145.0 Kg
Package Type: Wooden Carton Packing,3 Pcs 960*960mm Iron Cabinets In One Wooden Carton.
High Light:

pole led display

,

stadium perimeter led display

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution



Product Description

1. The first level LED chip from KN-Light.

2. With pure Copper wire connection in LED.

3. Grand A row material for module frame and mask.

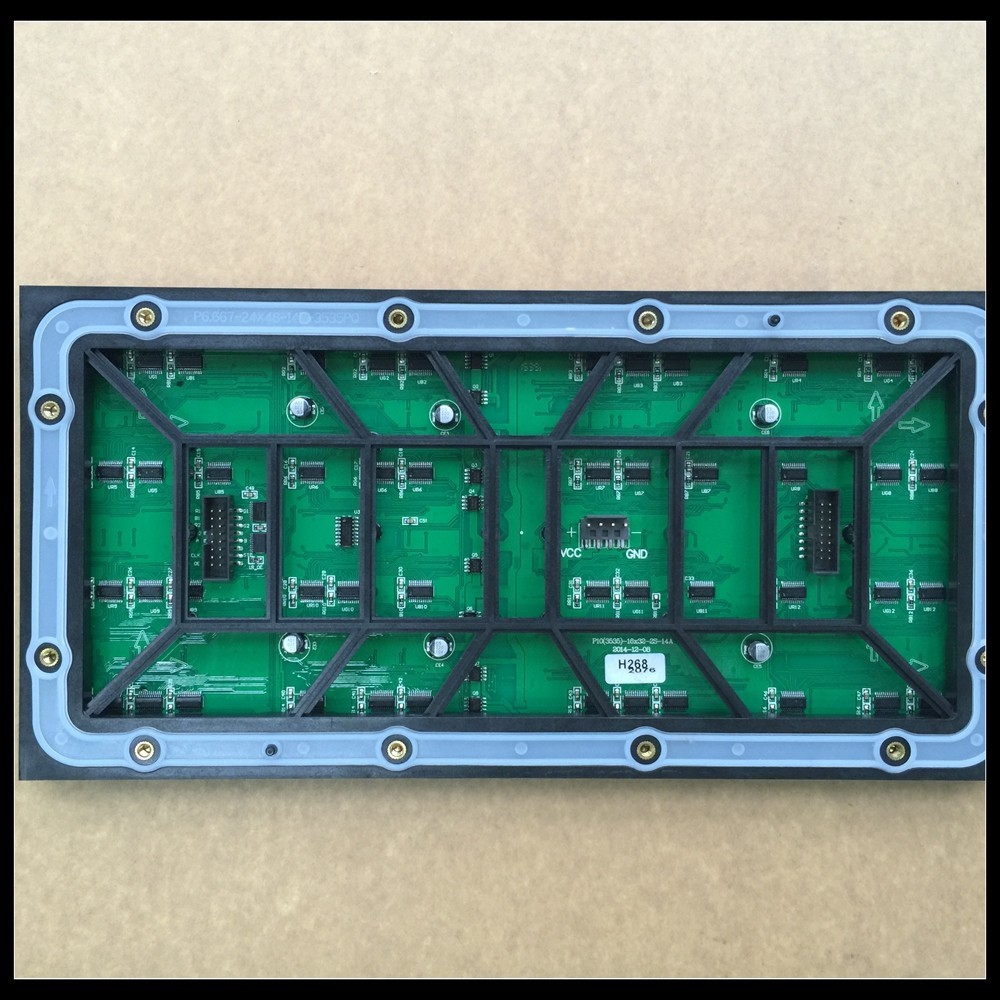

4.  4 layers PCB and copper plating thickness > 18mil.

5. Ag alloy solder paster to ensure good soldering on PCB.

6. Stainless steel screws when assembly.

7. Disassembly and assembly are quick and easy.

8. Two years warranty.

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 0

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 1

Outdoor LED Sign Parameters:

Pixel Pitch: P6 (6mm) P8  (8mm) P10  (10mm)
LED Specification: 1RGB(SMD 3535) 1RGB(SMD 3535) 1RGB(SMD 2828)
Pixel Density: 27,777 dots/sqm 15625 dots/sqm 10000 dots/sqm
Module Size: 192×192mm 320×160mm 320×160mm
Module Pixel Density: 32×32 dots 40×20 dots 32×16 dots
Driving Method: 1/4 scan 1/3 scan 1/2 scan
Refresh Rate: ≥1920Hz ≥1920Hz ≥1920Hz
Brightness: >6000-6500CD/sqm >7000 CD/sqm >7000 CD/sqm
Max. Power Consumption: 780 W/sqm 780 W/sqm 780 W/sqm



The advantage for LongRun Energy Saving outdoor LED sign

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 2Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 3Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 4

Highway outdoor Led Board Sign Installation & Cable Connection Diagram:

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 5

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 6


Packaging & Shipping

Highway Led Board Sign Packing: For fixed installatin project, cellular carton or plywood case packing is recommended to save cost.But if the Highway Led Board Sign is uesed for rental,then flight case is the best choice,as it is more convenient for transportation and dismantling.



Company Information

LongRun Optoelectronics Co.,Ltd,a professional indoor and outdoor full color led billboard display manufacture,which can offer any kinds of led panel in competitive price.Tag: Highway Led Display Board, Led Outdoor TV Billboard ,Stage Background Led Display Big Screen ,Advertising led display,Led video wall,led billboard,led display panel,truck mobile led display,indoor advertising led display screen,stage led screen for concert,outdoor led advertising screen,P4 indoor led exhibition display,theatre led display,led screens for events,rental mobile led screen ect with great quanlity and excellent support after sale.

Our engineers have vast experience in the industry having developed all kinds for led panel solutions includign message boards,graphic panels,time/temperature displays,full color video screen.



Over the years we have installed thousands of led displays into numerous industries-shops,shopping center,corporate offices,factories,call center,government buildings,transport links,stadiums and arenas.

Energy Saving P10 Outdoor Smd Led Screen , Highway Led Display High Resolution 7





Highway Led Board Sign CE Certification:


Our Services

1. Your inquiry related to our products or price will be replied in 12hrs.
2. OEM&ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.

Thank you for your interest in Highway Led Board Sign from LongRun. We look forward to the opportunity to provide you with our best service!
