|LED Type:||SMD3535||Pixels Per Sqm:||10000 Dots|
|Module Size:||320*160 Mm||Brightness:||>= 7500cd/sqm|
|Scan Method:||1/2||Fresh Rate:||>= 1920Hz|
|Life Span:||>100,000 Hours||View Distance:||10~80 M|
|Usage:||OUTDOOR||Tube Chip Color:||FULL COLOR|
|Screen Dimension:||960*960mm||Selling Units:||Single Item|
|Single Package Size :||101X200X113 Cm||Single Gross Weight:||52.0 Kg|
|Package Type:||Wooden Carton Packing,1 Pcs|
pole led display,
roadside led display
Lightweight HD 10mm Outdoor Fixed LED Display For Roadside 1/4 Scan Mode
Outdoor P10 video led display Parameters:
|Scanning Mode||1/4 Scan|
|Grey Scale||14 Bits|
|Best viewing distance||>10m|
|Cabinet Size||960*960 mm|
|Cabinet Resolution||96*96 Pixel|
|Maximum Power consumption/sqm||780W|
|Driving method||Constant driving|
P10 outdoor led display screen feature:
1. The first level LED chip from Taiwan Epistar .
2. With pure golden wire connection in LED.
3. 4 layers PCB and copper plating thickness > 30mil.
4. Ag alloy solder paster to ensure good soldering on PCB.
5. Stainless steel screws when assembly.
6. easy-assembly cabinet .
7. WIFI and 3G/4G control are available, cell phone control is ok too.
8. Two years warranty .
Outdoor P10 video led display Cabinet Details:
We offer several Outdoor LED Video Wall specification options from our popular standard billboard sizes to totally customized displays, we can help you select the digital signage that will fit your needs. Choose from our many Outdoor LED Video Wall specifications and sizes.Cabinet dimension is selectable,we have three type of cabinet for you to choose.

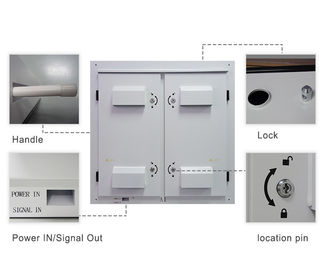

Three type of P10 video led display Cabinet Photo:
P10 outdoor Shenzhen led display product combining the advantages of P10 SMD, good waterproof, good image, good brightness.with ICN2045,4.2V Energy Saving Solution:
We already have many successful cases for P10 video led display
P10 video led display System Schematic: WIFI and 3G,4G control are available
1. Your inquiry related to our products or price will be replied in 12hrs.
2. OEM&ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.
