Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing

Product Description

1. LED light chip use Changelight 6.5mil red and Silan Azura 5*6.5mil bule&green.

2. SMD 1515 black lamp

3. With pure black copper wire connection in LED.

4. With ICN2153+ICN2012 from CHIPONE.

5. All new stainless steel screws when assembly.

Pamameters

Item		Pamameters
Module	Mode	P2.0
	Pixel pitch(mm)	2mm
	Physical Density(dot/m2)	250,000
	LED Confifuration	1RGB
	LED Type	SMD1515
	Module Size(mm×mm)	240×180mm
	Module Resolution(PX×PX)	120×90
	Scanning Mode	1/30
	Brightness(cd/m2)	400~1000
Main Technical Parameters	Grey Scale	14bit
	Refresh Rate(Hz)	≥3840
	Drive Mode	Constant Current Drive
	Module Mask Structure	N/A
	Horizontal Viewing Angle(Deg)	140
	Vertical Viewing Angle(Deg)	120
	Cabinet Resolution(PX×PX)	240×270
	Module Power Consumption(w)	23
	Cabinet Max Powe Consumption(w)	140
	Cabinet Average Power Consumption(w)	40
	Cabinet Size(mm×mm)	480×540
	Cabinet Weight(Kg)	8.6
	Cabinet Thickness(mm)	85
	Cabinet Material	Die-casting Aluminum
	Color(M)	>16.7
	Input Voltage	AC110V~220V+/-10%
	Refresh Frame Frequency(Hz)	50~60
	Protection Level	IP45
	Working Environment	Indoor
	Working Temperature(°C)	-40°~+60°
	Storage Humidity(RH)	40%~60%
	Life Span(H)	100,000

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 0

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 1

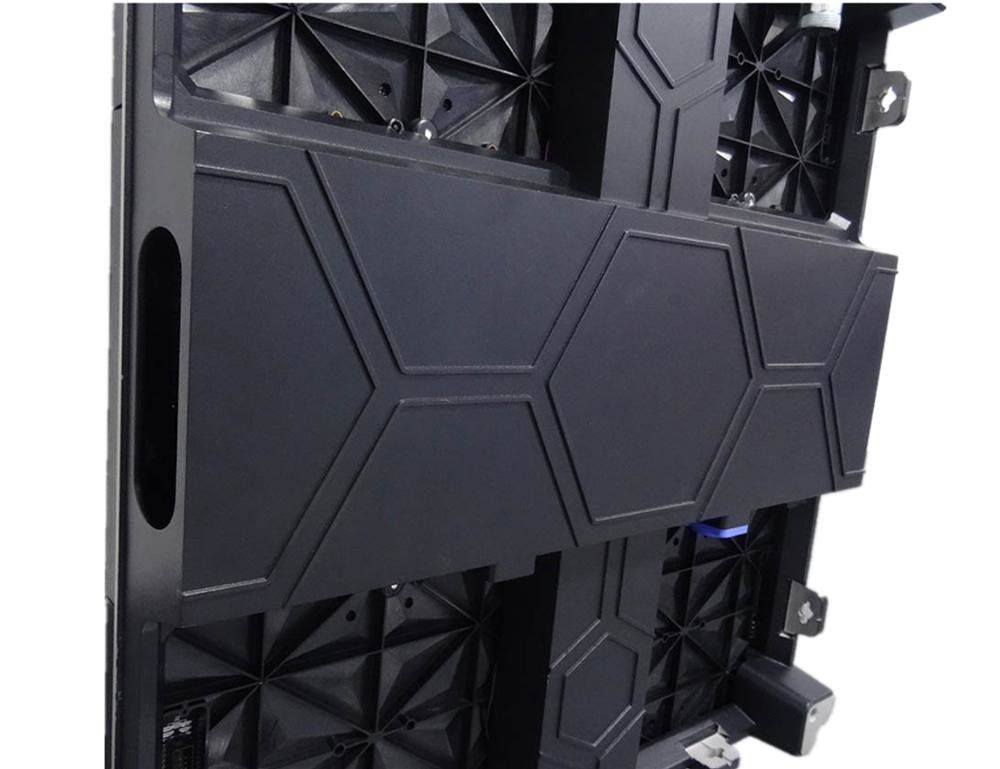

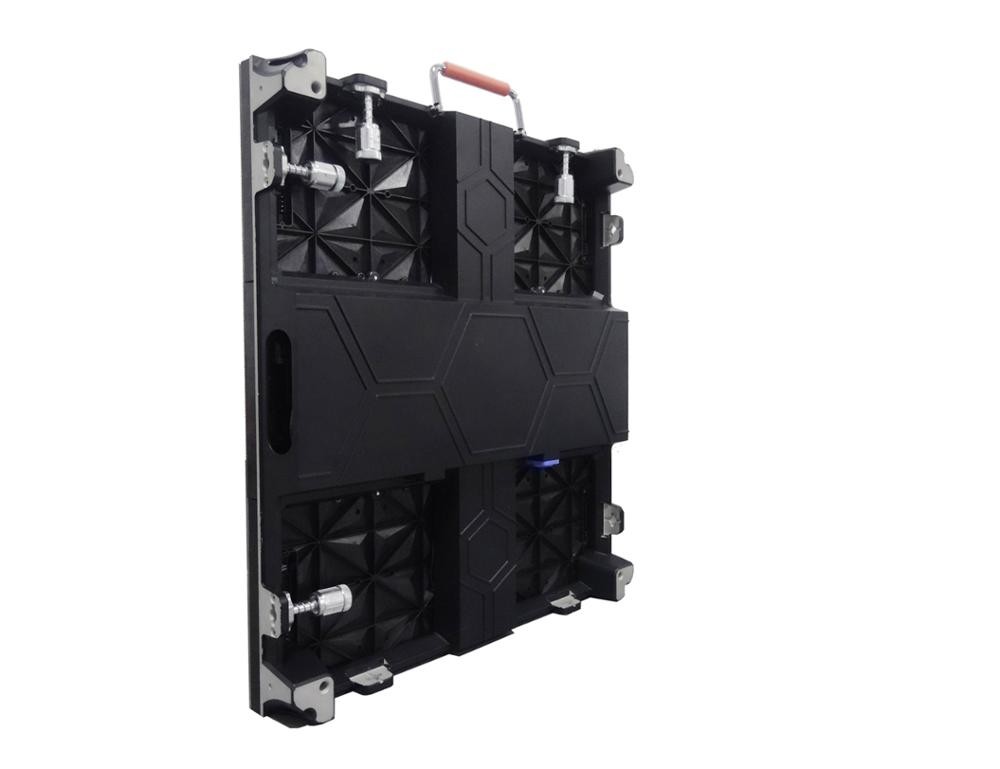

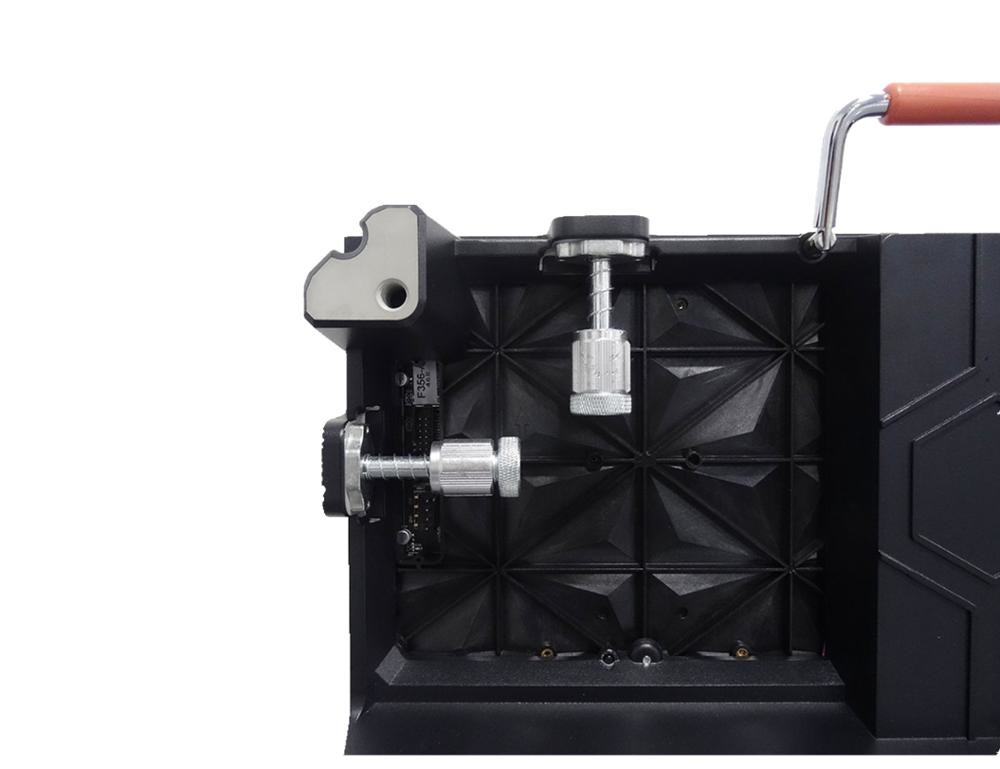

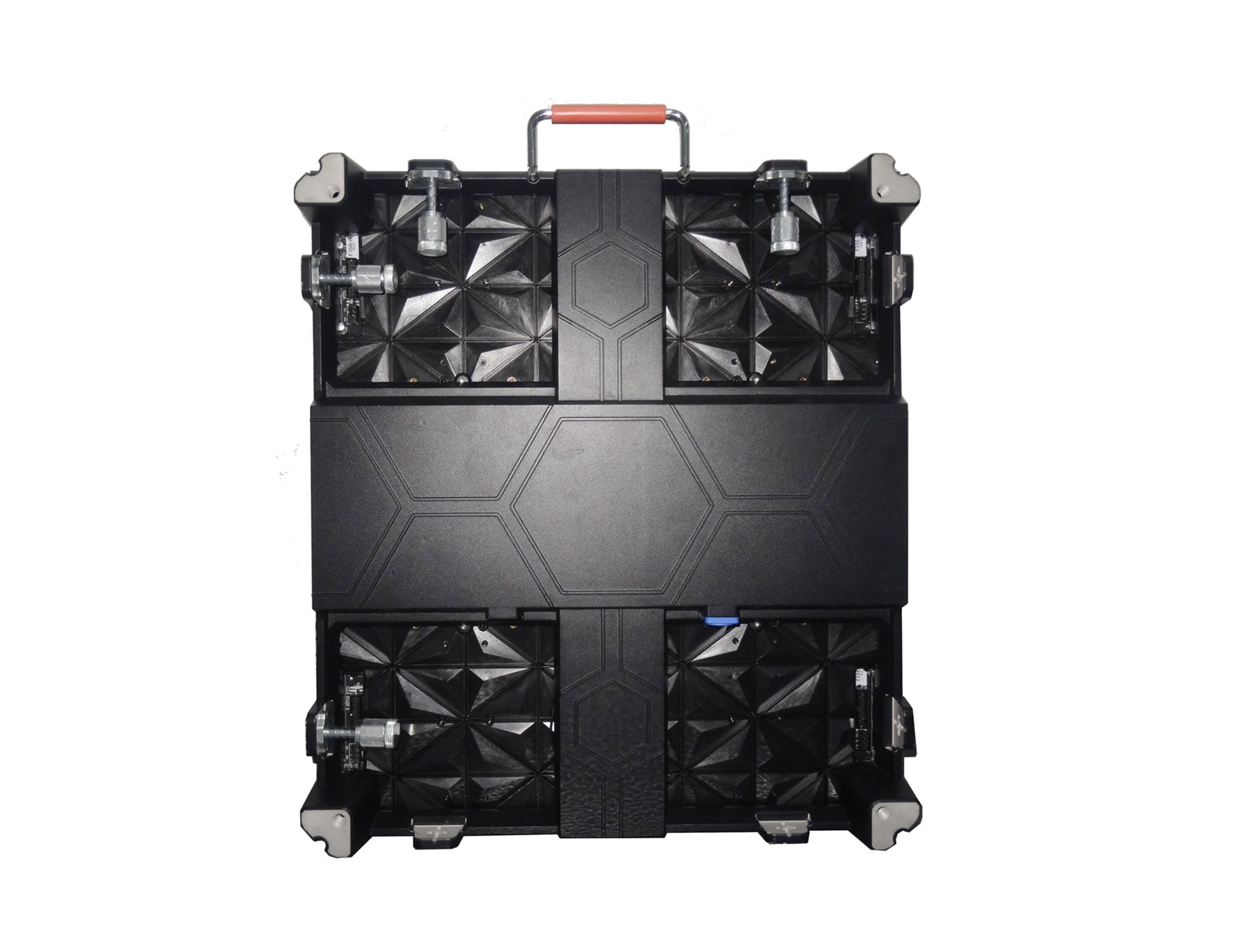

Cabinet

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 2

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 4

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 5

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 6

Applications

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 7

In Dubai

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 8

Company

Company Information

LongRun perseveres in carrying on its relentless pursuit if excellent quality, focused on full color LED display's R&D, sales and service. It has its products successfully achieved CCC, CE, FCC, UL etc professional certifications recognized internationally. On quality control, it implements strictly and perfectly under ISO 9001:2008 quality certification system. In daily practices and applications, it emphasizes on 7S management standards. During producing process, it carries out strict quality testing on all processes of IQC, IPQC, QC, CFQC, QA and strict management on supply chain. Until now, LongRun has independently developed and manufactured a complete range of divercified display products. They have covered more than 40 countries with over 3,000 success cases in above 10 different application fields including advertising media, stage entertainment, sports stadiums, urban lighting, traffic guidelines, financial institutions etc. LongRun's LED display has own great favor from numerous clients home and abroad for its high definition, easy installation, smart design, stable quality etc.

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 9

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 10

Packaging

Packaging & Shipping

Commercial Light RGB Indoor Fixed LED Display Panel Seamless Splicing 11

FAQ

Q: What is the brightness, viewing angle and wavelength of the LED?

A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize

Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.

A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color

Q: Which chip vendors are you buying from?

A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan

Q: What is the chip size you're using for outdoor display? How about indoor display?

A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted

Q: How much will the brightness of LED drop down after 1000hrs?

A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%

Our Service:

1. Warranty: 2 years

2. Replacement: 1:1 replacement for defective product

3. Online technicial support: Long distance online technicial support for 12 hours from 8:30am to 8:30pm and from Monday to Saturday.

4. Free training: free training in our factory is welcome and available on working days.

5. Professional advice: all clients could get our professional advice on cases or projects etc.
