P8 Outdoor Fixed LED Display

Basic Information
Place of Origin: China
Brand Name: LongRun
Certification: CE
Model Number: FH5.92/ FH8
Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Plywood cases
Delivery Time: 18 - 23 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sqm / month
Usage: Outdoor Pixels: FH5.92/ FH8
Module Size: 320x320mm Cabinet Size: 640*960mm
Application: Outdoor Billboard, Outdoor Advertising LED Screen, LED Sign , LED Screen, Giant Screen Product Name: Common-cathode P5.92 P8 Front Service Outdoor Fixed LED Display Screen
Brightness: 6000cd/sqm Refresh RateLife Span: >1920Hz
Working Temperature: -40℃~+80℃
High Light:

P8 Outdoor Fixed LED Display

,

P5.92 Outdoor Fixed LED Display

,

P5.92 Advertising Screen Display

P8 Outdoor Fixed LED Display



Common-cathode P5.92 P8 Front Service Outdoor Fixed LED Display Screen



 Product  Details Quick Reviews

1. Usage:Outdoor Fixed LED Screen 640*960mm

2. Pixel Pitch: P5.92 / P8

3. Cabinet size: 640x960mm die-casting alumium



Product Features

LongRun Outdoor Paladin Product.

Module size:320x320mm waterproof module. Standard cabinet size:640x960mm. Module could be front service. It is suitable for outdoor various brightness environment, with the characteristics of high brightness, high contrast, gorgeous and real picture, high protection ability, excellent weather resistance, long service life, etc.

  • Module size:320x320mm, compatible pitch: FH5.92, FH8.
  • 640x960mm die-casting aluminum cabinet, anti-oxidation, anti - corrosion.
  • Good waterproof performance, with waterproof silicon rubber on back basement of module, and the design of water guide groove, quickly export rainwater and other liquids.
  • Strong UV resistance, IP65 protection level, for free to use in all kinds of bad weather.
  • Front service module, save maintenance space.

Product Technical Parameter

Item Specification Module Picture
Series Paladin Series Module P8 Outdoor Fixed LED Display 0
Pixel Pitch 5.92mm, 8mm
Resolution 54x54, 40x40
Module Size 320mmx320mm (W x H)
Module Weight 2kg



Item Specification Cabinet Picture

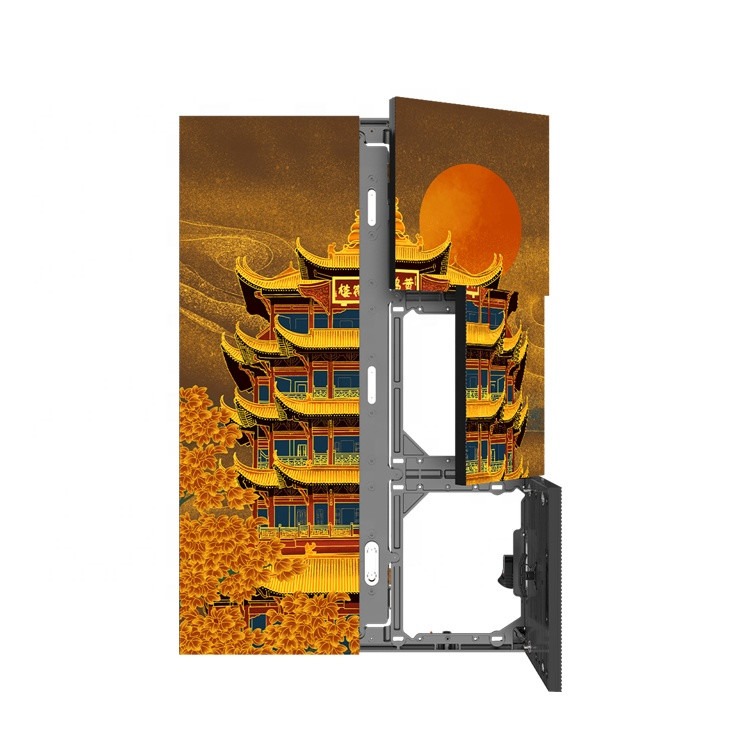

Series Paladin Series Cabinet P8 Outdoor Fixed LED Display 1
Material Die-casting Aluminum
Pixel Pitch 5.92mm, 8mm
Resolution 108x162, 80x120
Cabinet Size 640mmx960mm(W x H)
Cabinet Weight 27kg


Product Pictures

P8 Outdoor Fixed LED Display 2

P8 Outdoor Fixed LED Display 3

P8 Outdoor Fixed LED Display 4





Exibitions

P8 Outdoor Fixed LED Display 5









Logistic and payment



P8 Outdoor Fixed LED Display 6

FAQ

Q: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
Q: What is the chip size you're using for outdoor display? How about indoor display?
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
Q: How much will the brightness of LED drop down after 1000hrs?
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
