COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting

Basic Information
Place of Origin: China
Brand Name: LongRun
Certification: CE
Model Number: COB0.93 COB1.25 600*337.5mm
Minimum Order Quantity: 1 sqm
Price: Negotiable
Packaging Details: Flight cases / Plywood cases
Delivery Time: 18 - 23 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sqm / month
Package: Chip On Board Technology Pixel Pitch: 0.93mm , 1.25mm
Cabinet Size: 600*337.5mm Module Size: 150*168.75mm
Refresh Rate: 3840HZ Viewing Angle: 160°/140°(H/V)
Application: Livestream, Broadcast , Meeting Room Product Name: COB0.93 / 1.25 Indoor LED Video Wall Display For Live Stream / Broadcasting
Warranty: 2 Years
High Light:

COB LED Video Wall Display

,

Live Stream LED Video Wall Display

,

P0.93 Indoor LED Video Wall

COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting



 Product  Details Quick Reviews

1. Application: LED Video Wall for Livestream / broadcast / meeting room

2. Pixel Pitch: COB0.93 , COB1.25

3. Cabinet size: 600*337.5



LED Video Wall Display​ Features

This product adopts COB encapsulation technology, which is different from the traditional SMD surface-mount encapsulation. It integrates the light-emitting RGB chip in the PCB board instead of soldering LED lamp to the PCB one by one. This technology effectively improves the reliability, light color and protection performance of LED display.



1. 600mmx337.5mm die-casting aluminum cabinet, compatible pitch M0.93/M1.25.

2. The Horizontal and vertical viewing angle reach 170 degrees, wider than SMD screen.

3. Big high-quality chip, pure gold bonding wires, and pads are immersed gold technology, which is more reliable.

4. High refresh rate at low gray, refresh rate ≧3840HZ, Grey scale ≧14Bit.

5. Excellent heat dissipation and low light decay, PCB board dissipate heat directly, extended service life.

6. Module face IP65,water-proof, dust-proof, anti-oxidation, anti-static, anti-impact.

7. 16:9 ratio cabinet design,2K/4K/8K dot to dot match resolution,100% front service.



Product Technical Parameter

COB0.93 / 1.25 Indoor LED Video Wall Display For Live Stream / Broadcasting
Technical
Item M0.93-COB M1.25-COB
Pixel Pitch (mm) 0.9375 1.25
LED Configuration COB 1R1G1B COB 1R1G1B
LED Type 2 x 4 2 x 4
Physical Density (dot/m²) 1,137,778 640,000
Module Size (W ×H ×D) mm 150x56.25 150x56.25
Module Resolution (W ×H) 160x60 120x45
Module Material Plastic Plastic
Cabinet Size (W ×H ×D) mm 600x337.5x74.5 600x337.5x74.5
Cabinet resolution (W×H) dot 640x360 480x270
Cabinet Material Die Casting Aluminum
Scanning Mode 1/60 1/45
Cabinet Flatness (mm) ≤0.10 ≤0.10
Grey Scale (Bit) 14Bit+Control Software 2Bit=16Bit 14Bit+Control Software 2Bit=16Bit
Protection Level LED Lamp side IP65, rear IP45
Installation/Service Method Front or back installation/Front service



COB0.93 / 1.25 Indoor LED Video Wall Display For Live Stream / Broadcasting
Optical
Item M0.93-COB M1.25-COB
Brightness 50-500cd/adjustable
Color Temperature 3200-9300K adjustable
Brightness Uniformity ≥98%
Color Uniformity Within 0.003Cx, Cy
Horizontal/Vertical View Angle ≥170°
Contrast Ratio ≥10000:1
Color Calibration of Single Dot Yes
Brightness Calibration of Single Dot Yes

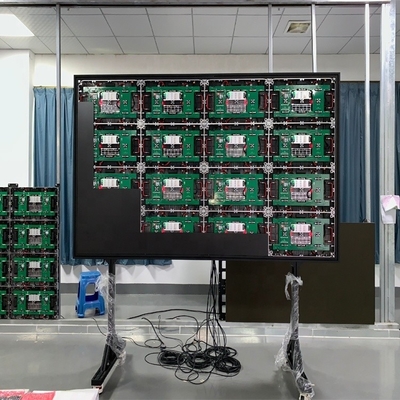

Product Pictures

COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 0
COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 1



COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 2



COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 3



SMD VS COB



COB,called chip on board,puts LED chips on the PCB board directly.


SMD,called surface mounted devices,firstly puts LED chips and wires into the frame.Secondly package the frame with ethoxyline resin.Finally put it on the PCB board after reflow



COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 4



COB Advantage



1. Without diameter of single pixel, pitch could be smaller.

2. Reduce frame cost,lower heat resistance of chips,achieve high
density package.

3. Use ethoxyline resin,improve protection function.

4. Without bare pixel foot,heat radiation by PCB board,more stable and reliable.
5. High package efficiency decrease cost.
6. Ultra wide 170 ° viewing angle bring good visual experience.


Related Cases

COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 5



COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 6

COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 7



COB 0.93 1.25 Indoor LED Video Wall Display For Live Stream Broadcasting 8



Our Services

1. Reply your inquiry in 12 hours.

2. Experienced staffs answer all your query in fluent English.

3. Customized design is available, OEM & ODM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.
