P3.91 500x500mm Indoor Fixed LED Display Big Screen With Die Casting Cabinet

Basic Information
Place of Origin: Guangdong, China
Brand Name: Longrun
Model Number: P3.91
Minimum Order Quantity: >=1 Square Meters
Price: Negotiable
Packaging Details: 8 in 1 flight case
Supply Ability: 500 Square Meter/Square Meters per Month
LED Chip: Epistar Life Span: 100000hours
Certificate: CE ROHS Warranty: 2 Years
Application: Adervertising Usage: Indoor
Tube Chip Color: 1RGB Display Function: Animation, Graphics, Video
Pixels: 3.91 Screen Dimension: Customized
Port: Shenzhen
High Light:

pole led display

,

stadium perimeter led display

P3.91 500x500mm Indoor Fixed LED Display Big Screen With Die Casting Cabinet


Product Description

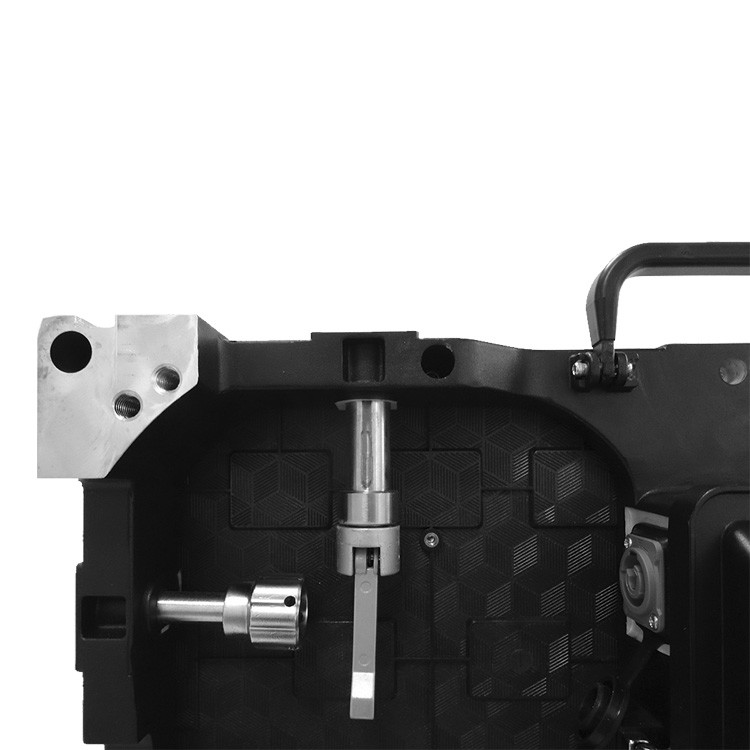

P3.91 Die Casting Aluminum Cabinet
1. P3.91 with SMD2121 LED and PWM IC has 7680Hz refresh rate, 16bit gray levels and excellent color consistency.
2. Magnet design allows front and rear maintenance, module can be disassembled and taken out though cabinet.
3. Carbon fiber material flat mask with bolt and screw cover design, ensures 140 degree viewing angle and avoid heated distortion problem.
4. LCD panel on cabinet back is optional, can show company information, screen temperature, humidity, system voltage, cumulative operation time etc.
5. Special cabinet bottom design insures good protection for mask and LED.
6. High-precision die casting aluminum material, seamless match, unique suit design.
7. Standard dimension module size: 250mm x250mm, cabinet size 500mm x 500mm.
8. Compatible models: indoor P2.98, P3.91, P4.81, P5.95 and outdoor PH3.91, PH4.81, PH5.95.



Technical parameter





Specification

Indoor Outdoor
P2.98 P3.91 P4.81 P5.95 PH3.91 PH4.81 PH5.95
Pixel Pitch(mm) 2.98 3.91 4.81 5.95 3.9 4.8 5.95
LED Type SMD1515 SMD2121 SMD2121 SMD3528 SMD1921 SMD2727 SMD2727
Module Size(mm)

250*250



Scanning Mode 1/14 1/16 1/13 1/14 1/8 1/13 1/7
Optimum Viewing Angle

H:140℃

V:120℃

Brightness(cd/㎡) 600-1800 600-1500 600-1200 600-1800 1000-6500 1000-5500 1000-6500
Grey Scale(bit) 16
Refresh Rate(HZ) >1920
Power Consumption 200/60 160/40 160/40 160/40 200/60 200/60 200/60
Cabinet Resolution(PX) 168*168 128*128 104*104 84*84 128*128 104*104 84*84
Cabinet Size(mm) 500*500*85
Cabinet Weight(kgs) 7.3 7.85

P3.91 500x500mm  Indoor Fixed LED Display Big Screen With Die Casting Cabinet 0



Application

 P3.91 500x500mm  Indoor Fixed LED Display Big Screen With Die Casting Cabinet 1

Packaging & Shipping

 P3.91 500x500mm  Indoor Fixed LED Display Big Screen With Die Casting Cabinet 2

P3.91 500x500mm  Indoor Fixed LED Display Big Screen With Die Casting Cabinet 3





Our Services

Service Details



1. Your inquiry related to our products or price will be replied in 24hrs.


2. OEM&ODM,any your customized lightings we can help you to design and put into product.


3. Distributoership are offered for your unique design and some our current models.


4. Protection of your sales area,ideas of design and all your private information.


5. Best cost performance and perfect service before and after sales.
