High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen

Basic Information
Place of Origin: Guangdong, China
Brand Name: LONGRUN LED
Model Number: LR-C-P3.91
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: 1. Flightcase 2. Plywood 3. Honeycomb carton
Supply Ability: 2000 Piece/Pieces per Month
Product Name: Indoor P3.91 Led Display Pixel Pitch: 3.91 Mm
Pixel Configuration: 1RGB Pixel Density: 65,536 Dots/m2
LED Chip: Epistar LED Lights: SMD 2121
Cabinet Size: 500mm*500mm Cabinet Resolution: 128*128
Brightness: 400-1000cd/m2 Refresh Rate: 3840Hz
Usage: Indoor Screen Dimension: Customized
Tube Chip Color: FULL COLOR Display Function: Video, Animation, Graphics
Pixels: 3.91 Mm Port: Shenzhen, China
High Light:

stage rental led display

,

led stage backdrop screen

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen



Product Description

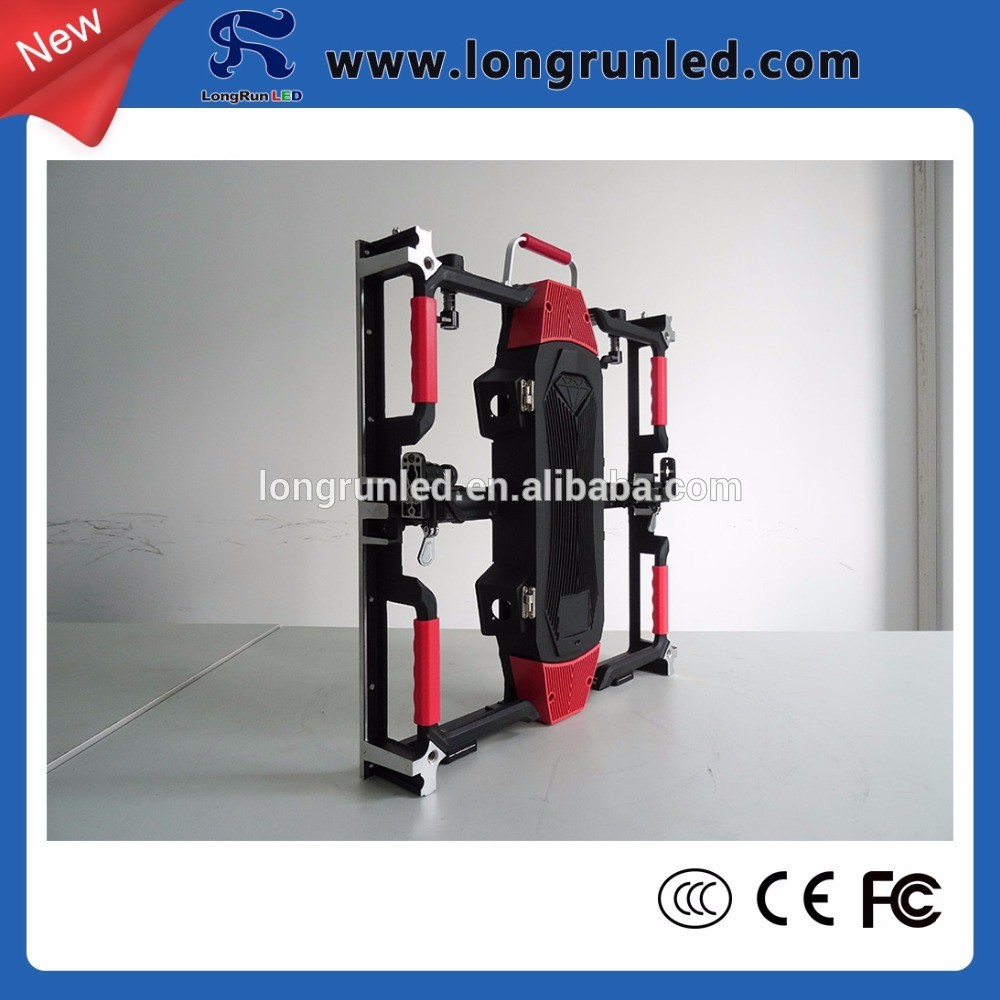

√ High precision die casting aluminum material cabinet, special design on cabinet bottom ensures flatness of whole screen even the platform is not flat.



√ Front and back maintenance design by module magnet assembly.



√ Standing, moving, wall mounting or hanging installation methods is available.



√ High-performance PCB board substrate with strict technology process ensure perfect flatness performance, showing the most real and brilliant colors.



Specifications



Module specification
LED configuration 3 in 1
Pixel pitch P3.91
LED lamp SMD2121
Module resolution 64*64
Module size 250*250mm
Cabinet specification
Module array 2*2pcs
Cabinet resolution 128*128
Cabinet size 500*500mm
Display area 0.25sqm
Flatness <0.2
Optical specification
Brightness 400-1000cd/sqm
Scan mode 1/16s
Refresh rate 3840Hz
Horizontal viewing angle 140degree
Vertical viewing angle 120degree
Eletrical specification
Cabinet power consumption 160w
Average power consumption 50w
Power supply AV 110V/220V (50/60Hz)
Operation specification
Lifespan 100,000 hours
Operation temperature -10~+60
Storage temperature -10~+50
Operation humidity 10%~80%
Storage humidity 40%~60%




Our Advantage

1. Adjustable curve angle, inner 5/10/15 degree, outer 5/10 degree.

2. Easy installation, can make special shape screens.





High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 0

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 1

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 2

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 3High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 4






Packing Details
Flightcase packing: 6 in 1
Dimension: 72x56x74cm
Gross weight: 71kgs
 High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 5





Successful Case Show

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 6

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 7



High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 8

Company Information

 High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 9

High Density Rental Curved Led Screen , P3.91 Flexible LED Display Screen 11

Our Services



  • Reply your inquiry in 12 hours.
  • Experienced staffs answer all your query in fluent English.
  • Customized design is available, OEM & ODM are welcomed.
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.
FAQ



Q: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
Q: What is the chip size you're using for outdoor display? How about indoor display?
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
Q: How much will the brightness of LED drop down after 1000hrs?
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
